Hikvision DS-3E1106P-EI/M 4-Port Smart PoE Switch | 45W PoE Budget | Long Range 300m | VLAN & PoE
Original price was: ₨ 14,999.00.₨ 8,999.00Current price is: ₨ 8,999.00.
Hikvision DS-3E1106P-EI/M Smart PoE Switch with 4 PoE ports, 45W power budget, VLAN, PoE watchdog, 300m long-range transmission, and surge protection—perfect for CCTV systems.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.

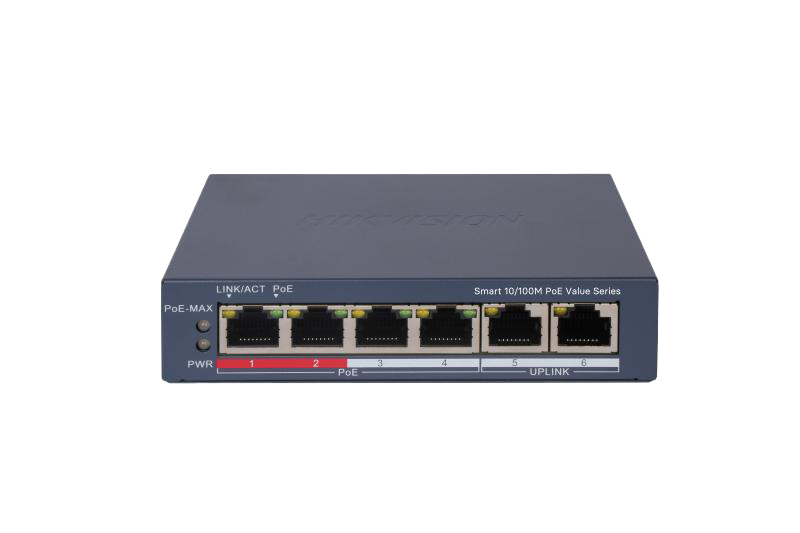

Hikvision DS-3E1106P-EI/M Smart PoE Switch is a professional-grade networking solution designed specifically for IP surveillance systems and small-to-medium networks. Featuring 4 Fast Ethernet PoE ports and 2 uplink RJ45 ports, this switch delivers stable power and data transmission to IP cameras, access points, and other PoE-enabled devices.
With a total PoE power budget of 45W and up to 30W per port, it fully supports IEEE 802.3af/at standards. Its Long Range PoE mode enables data and power transmission up to 300 meters, making it ideal for large premises and outdoor camera deployments.
Advanced smart features such as PoE Watchdog, VLAN (802.1Q), STP/RSTP loop prevention, port isolation, and cable detection ensure high reliability, enhanced security, and simplified maintenance. The durable metal housing, 6KV surge protection, and web-based management make it a dependable choice for 24/7 operation.
Perfect for CCTV systems, offices, retail stores, warehouses, and residential security networks.
✔ KEY FEATURES
-
4 × 10/100 Mbps PoE Ports + 2 × Uplink RJ45 Ports
-
45W Total PoE Power Budget (30W Max per Port)
-
Supports IEEE 802.3af / 802.3at
-
Up to 300m Long Range PoE Transmission
-
PoE Watchdog – Auto Restart Unresponsive Cameras
-
802.1Q VLAN Support (1–4094)
-
STP / RSTP Loop Prevention
-
Cable Detection for Fault & Length Detection
-
Port Isolation for Improved Network Security
-
VIP Ports for Priority Data Forwarding
-
6KV Surge Protection
-
Metal Housing – Desk or Wall Mounted
-
Web, Hik-Central Pro & Hik-Partner Pro Management
✔ SPECIFICATIONS TABLE
| Specification | Details |
|---|---|
| Model | DS-3E1106P-EI/M |
| Ports | 4 × 10/100 Mbps PoE, 2 × 10/100 Mbps RJ45 |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Budget | 45 W |
| Max Port Power | 30 W |
| Switching Capacity | 14 Gbps |
| Forwarding Rate | 10.42 Mpps |
| MAC Address Table | 2K |
| Internal Cache | 1 Mbit |
| Long Range PoE | Up to 300 m (Ports 1–4) |
| Surge Protection | 6 KV |
| VLAN | 802.1Q, up to 32 VLANs |
| Loop Prevention | 802.1D STP, 802.1w RSTP |
| Power Supply | 54V DC, 0.92A |
| Max Power Consumption | 50 W |
| Idle Power Consumption | 1.8 W |
| Material | Metal |

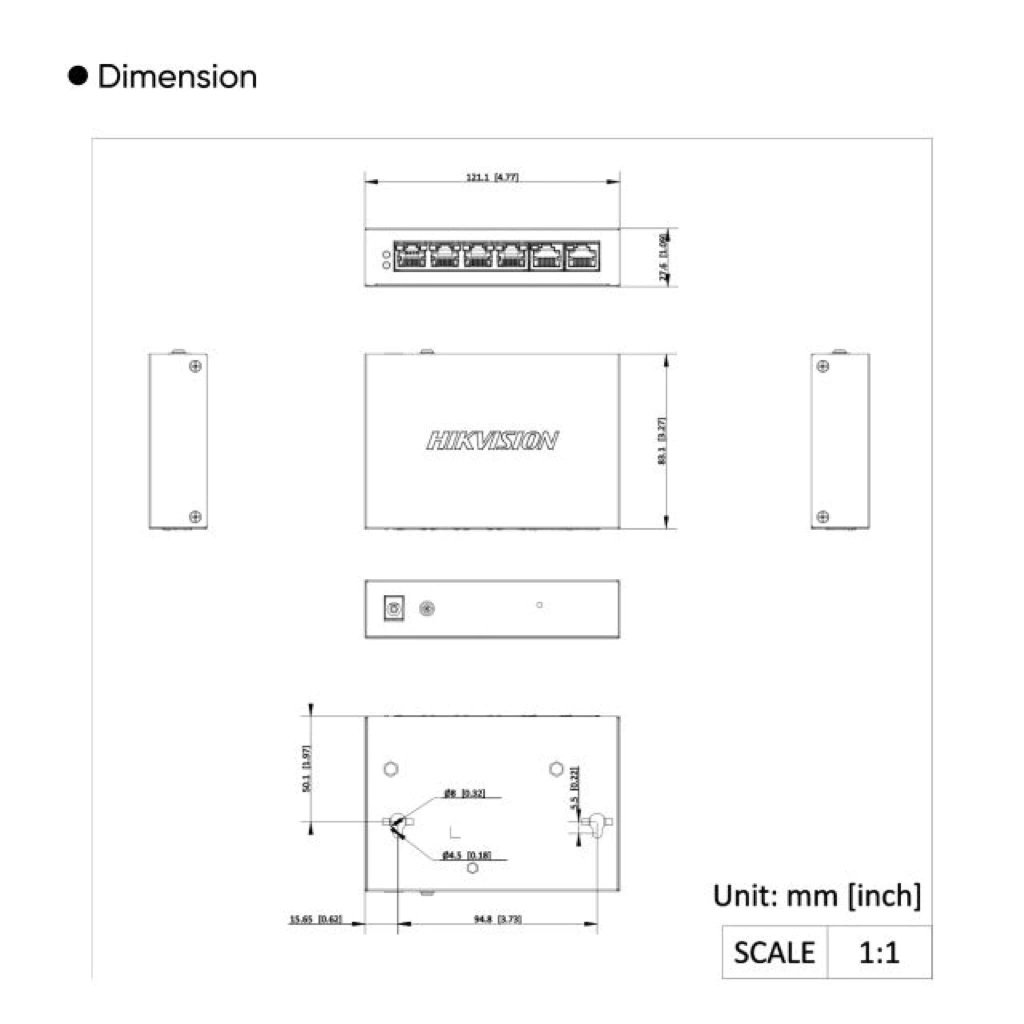

| Dimensions | 121.1 × 27.6 × 83.1 mm |
| Net Weight | 0.27 kg |
| Installation | Desk-Mounted / Wall-Mounted |
| Operating Temp | 0°C to 40°C |
| Certifications | CE, RoHS, WEEE, REACH |
✔ WHAT’S IN THE BOX
-
1 × Hikvision DS-3E1106P-EI/M Smart PoE Switch
-
1 × Power Adapter
-
1 × Quick Installation Guide
