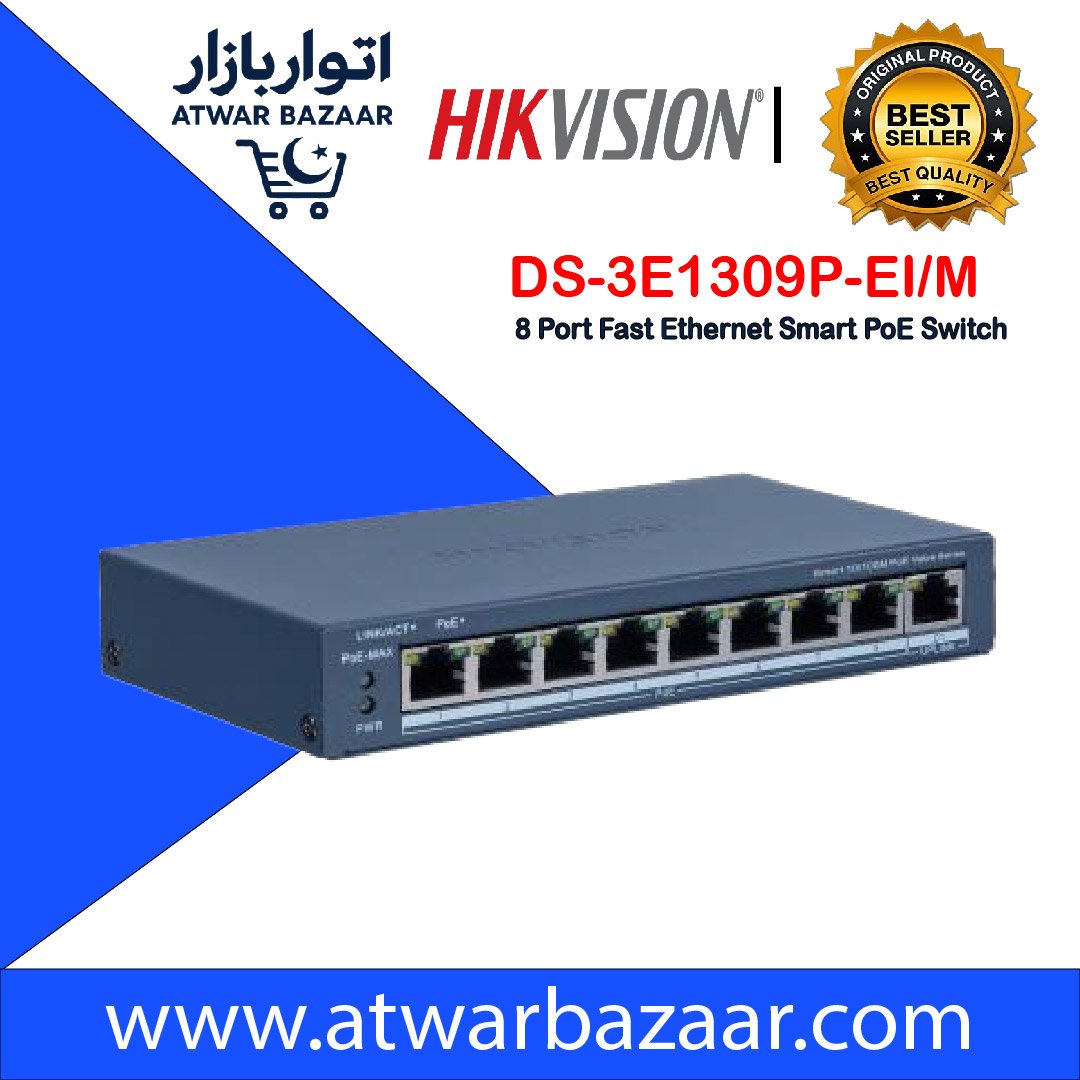

Hikvision DS-3E1309P-EI/M 8-Port Smart PoE Switch | 60W | VLAN | 300m Long Range | CCTV Network Switch
Original price was: ₨ 18,999.00.₨ 10,999.00Current price is: ₨ 10,999.00.
Buy Hikvision DS-3E1309P-EI/M Smart PoE Switch with 8 PoE ports, 60W power budget, VLAN, PoE watchdog & 300m long-range transmission. Ideal for CCTV systems.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.

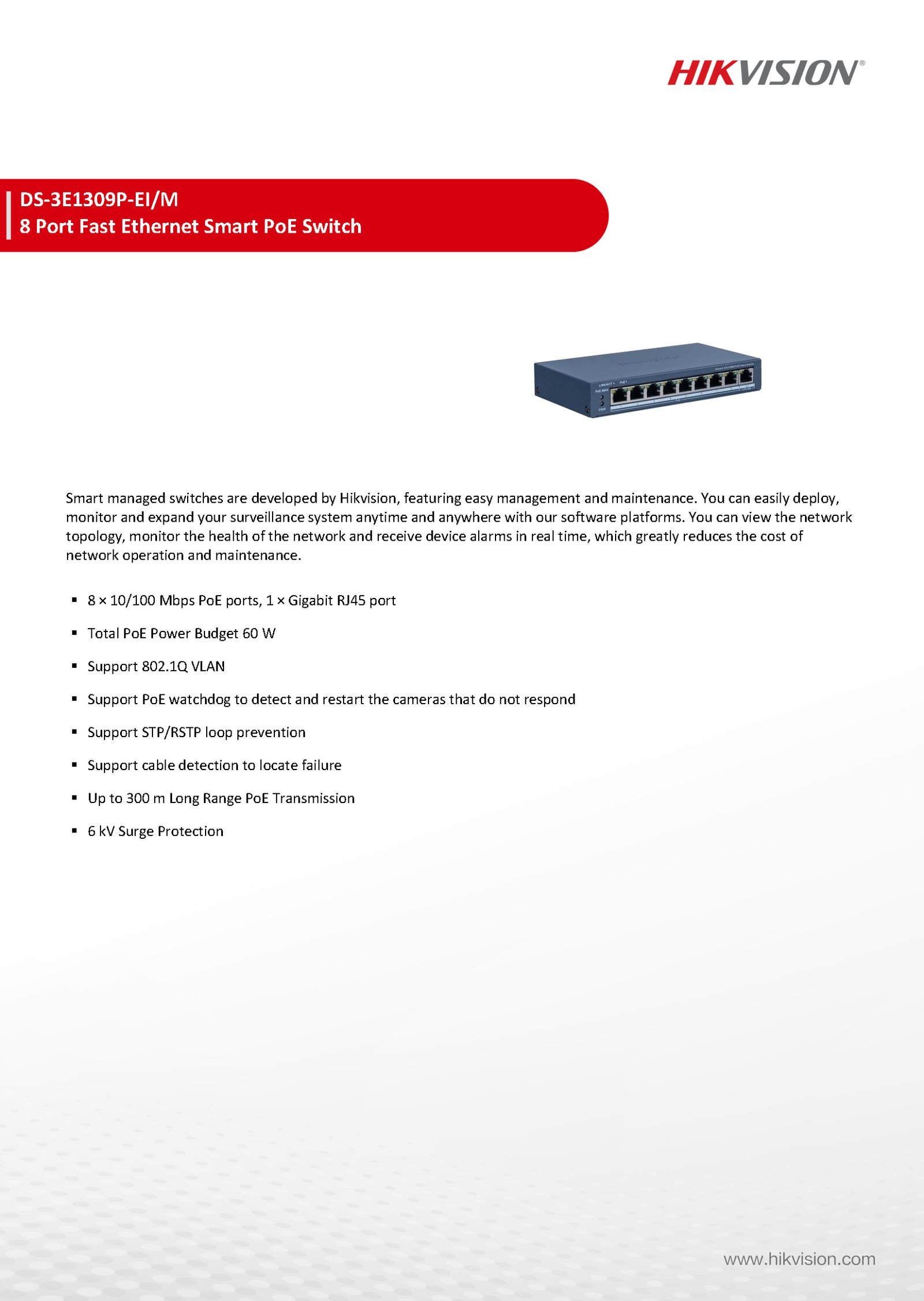

The Hikvision DS-3E1309P-EI/M Smart PoE Switch is a powerful and reliable networking solution designed specifically for video surveillance systems. Featuring 8 PoE ports and a Gigabit uplink, it provides stable power and data transmission for IP cameras, NVRs, and other network devices.
With up to 300 meters long-range PoE transmission, this switch eliminates the need for additional extenders in large CCTV deployments. The built-in PoE Watchdog automatically detects and restarts unresponsive cameras, ensuring uninterrupted security coverage.
Advanced network features such as 802.1Q VLAN, STP/RSTP loop prevention, port isolation, and cable detection enhance network security, stability, and troubleshooting efficiency. Its metal, fanless design ensures silent operation and durability in demanding environments.
Seamlessly manage and monitor your network using Hik-Partner Pro or Hik-Central Pro, making this switch ideal for homes, offices, warehouses, shops, and commercial surveillance installations.
🟦 Key Features
✔ 8 × 10/100 Mbps PoE Ports + 1 × Gigabit RJ45 Uplink
✔ Total PoE Power Budget: 60W
✔ IEEE 802.3af / 802.3at PoE Support
✔ Up to 300m Long-Range PoE Transmission
✔ PoE Watchdog – Auto restart unresponsive cameras
✔ 802.1Q VLAN for secure network segmentation
✔ STP / RSTP Loop Prevention
✔ Cable Detection for fault location & cable length
✔ 6kV Surge Protection for lightning safety
✔ Fanless Metal Housing – silent & durable
✔ Remote Management via Hik-Partner Pro

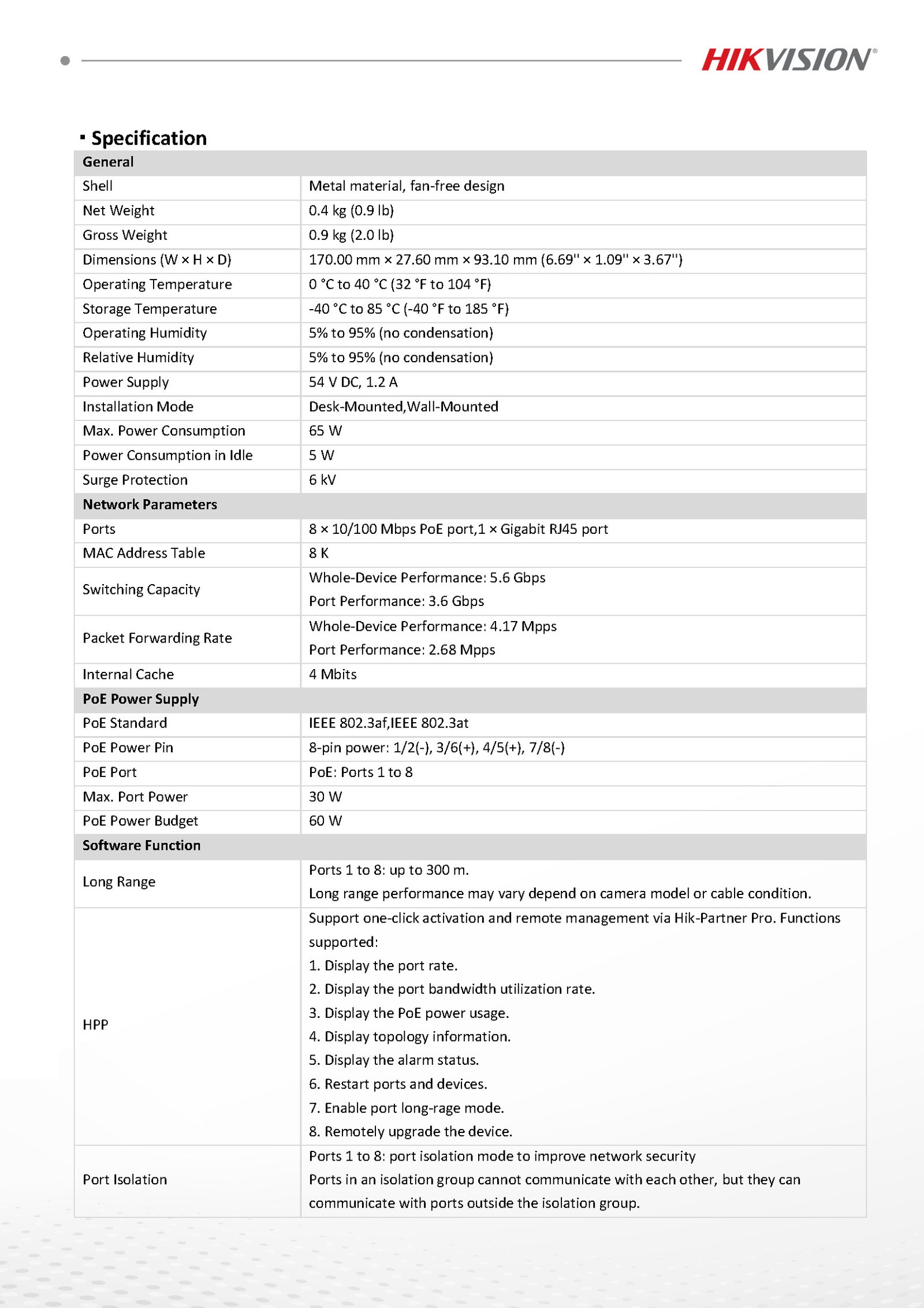

🟦 Specifications Table
| Specification | Details |
|---|---|
| Model | DS-3E1309P-EI/M |
| Ports | 8 × 10/100 Mbps PoE, 1 × Gigabit RJ45 |
| PoE Standard | IEEE 802.3af / 802.3at |
| Max PoE Port Power | 30W |
| Total PoE Budget | 60W |
| Long Range PoE | Up to 300m (Ports 1–8) |
| Switching Capacity | 5.6 Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| MAC Address Table | 8K |
| Internal Cache | 4 Mbits |
| VLAN | 802.1Q (ID 1–4094) |
| Loop Prevention | 802.1D STP / 802.1w RSTP |
| Surge Protection | 6 kV |
| Power Supply | 54V DC, 1.2A |
| Max Power Consumption | 65W |
| Idle Power Consumption | 5W |
| Installation | Desktop / Wall-Mounted |
| Housing | Metal, Fanless |
| Operating Temperature | 0°C to 40°C |

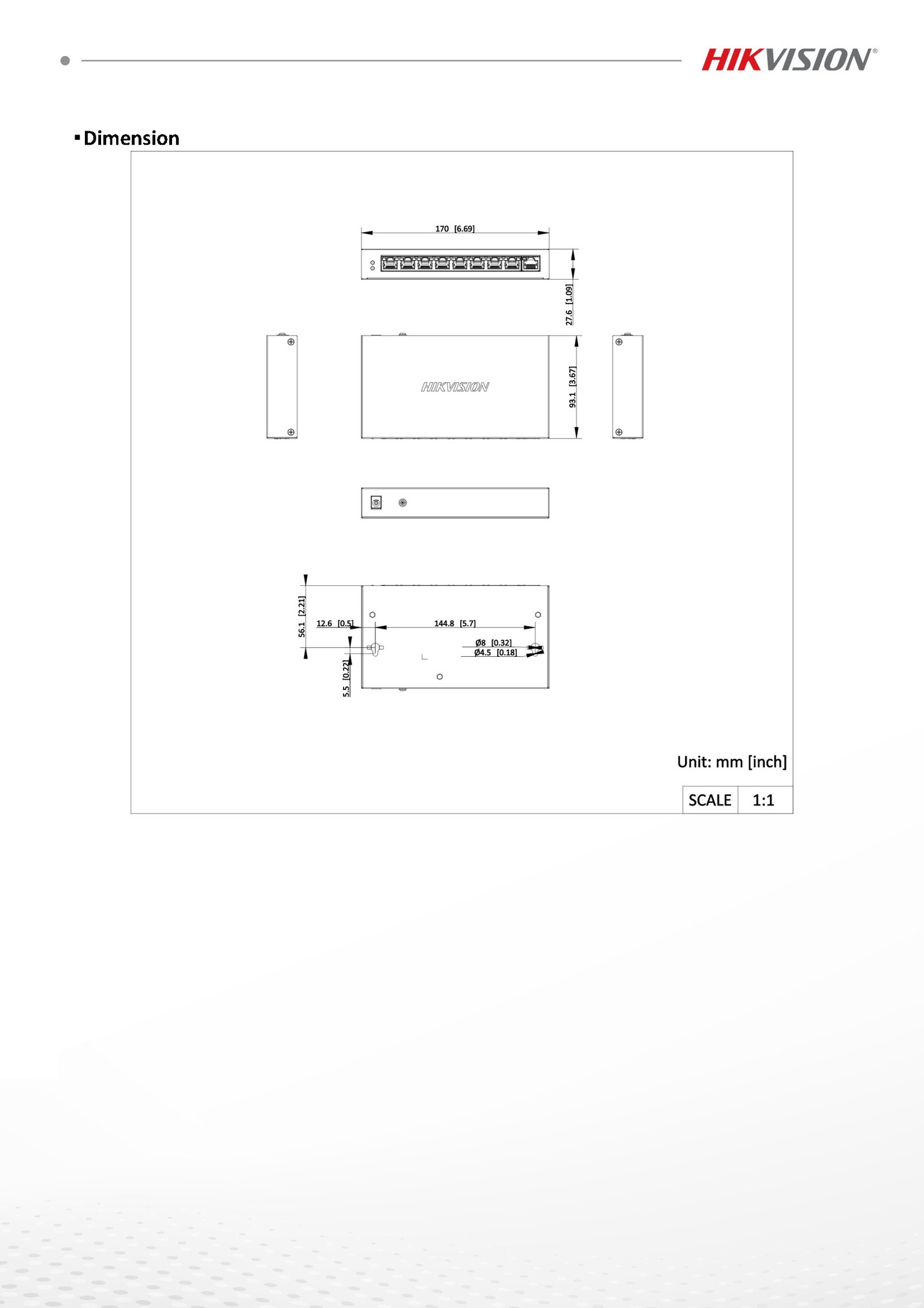

| Dimensions | 170 × 27.6 × 93.1 mm |
| Net Weight | 0.4 kg |
🟦 What’s in the Box
📦 Package Includes:
-
1 × Hikvision DS-3E1309P-EI/M Smart PoE Switch
-
1 × Power Adapter
-
1 × Power Cable
-
1 × Quick Installation Guide
