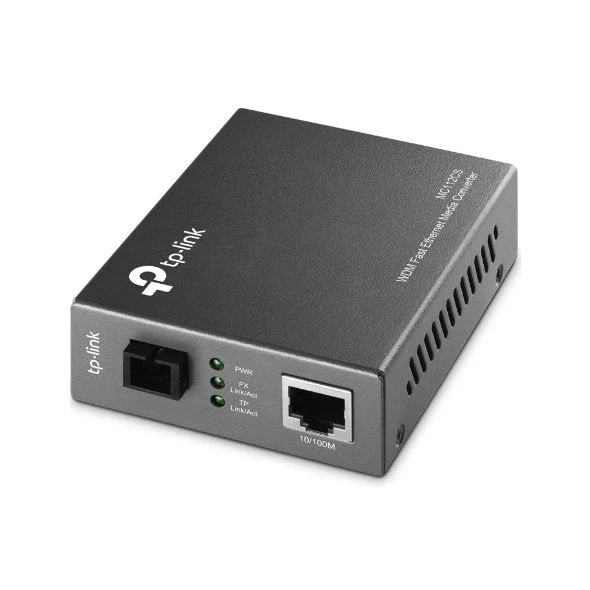

TP-Link MC112CS Gigabit Media Converter – 10/100Mbps WDM Single-Mode Fiber Converter (Up to 20km)
Original price was: ₨ 11,999.00.₨ 6,999.00Current price is: ₨ 6,999.00.
Buy TP-Link MC112CS Gigabit Media Converter at ArtwarBazaar. WDM single-mode fiber converter with 10/100Mbps speed, up to 20km range, and easy plug-and-play setup. Ideal for long-distance Ethernet and CCTV networking.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
⚙️ Product Description
The TP-Link MC112CS Media Converter is designed to convert between 10/100Base-TX Ethernet and 100Base-FX fiber connections, providing an efficient and reliable way to extend network distance up to 20 kilometers using single-mode fiber.
With WDM (Wavelength Division Multiplexing) technology, this converter transmits and receives data through a single fiber cable, saving cost and simplifying installation. Perfect for expanding network connections across buildings, campuses, or large facilities.
🔑 Key Features
-
WDM Technology – Transmit and receive over a single fiber using 1310nm Tx / 1550nm Rx wavelengths.
-
Extended Distance – Supports fiber connections up to 20km, ideal for long-range communication.
-
Auto-Negotiation – Automatically detects Half-Duplex / Full-Duplex modes for seamless performance.
-
Plug & Play Setup – Simple, quick installation with Auto MDI/MDIX RJ45 port compatibility.
-
Link Fault Passthrough – Detects and reports link failures instantly to minimize downtime.
-
Compact & Durable Design – Space-saving metal casing ensures reliability in industrial or office environments.
-
Energy Efficient – Consumes only 2.41W of power.
📦 Specifications
| Category | Details |
|---|---|
| Model | TP-Link MC112CS |
| Standards & Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Fiber Type | Single-mode Fiber (WDM) |
| Wavelength | TX: 1310nm / RX: 1550nm |
| Distance | Up to 20km |
| Ports | 1 × 100M SC/UPC Fiber Port, 1 × 100M RJ45 Port (Auto MDI/MDIX) |
| Transfer Modes | Half/Full Duplex |
| LED Indicators | Power, Link/Act, SPD, FDX/Col |
| Power Supply | External Power Adapter |
| Power Consumption | Max 2.41W |
| Dimensions (W×D×H) | 94.5 × 73 × 27 mm |
| Operating Temperature | 0°C–40°C |
| Storage Temperature | -40°C–70°C |
| Operating Humidity | 10%–90% (non-condensing) |
| Certifications | FCC, CE, RoHS |
| Package Includes | Media Converter MC112CS, Power Adapter, Installation Guide |
💡 Ideal For
-
Expanding Ethernet networks over long fiber distances
-
Connecting remote buildings or offices
-
Industrial and ISP network upgrades
-
Reliable data transmission in CCTV or IP camera systems
