Crown Nexus 6kW & 8kW IP66 Hybrid Solar Inverter | 5 Years Warranty
Price range: ₨ 224,999.00 through ₨ 324,999.00
Buy Crown Nexus 6kW & 8kW IP66 Hybrid Solar Inverters with robust outdoor protection, dual MPPT, high efficiency & 5-year replacement warranty — ideal for homes & businesses.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.

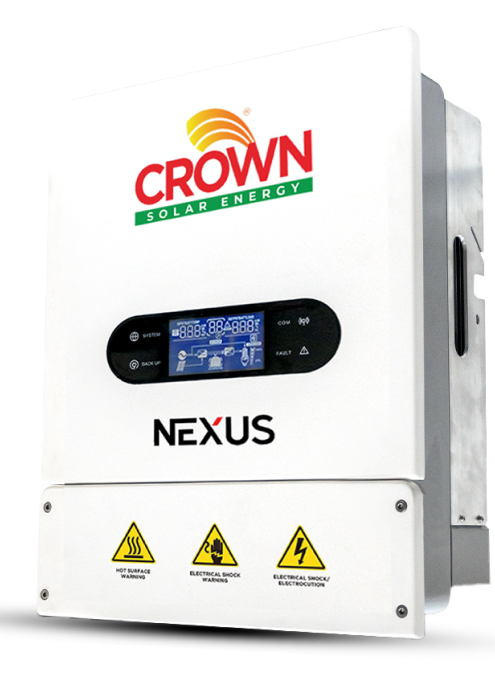

Crown Nexus Series IP66 Hybrid Solar Inverters
Models: 6kW (PV12000) & 8kW (PV16000) | 5 Years Easy Replacement Warranty
The Crown Nexus IP66 Series delivers powerful, efficient solar + battery + grid hybrid power with rugged outdoor protection. IP66 certification means it’s fully dust-tight and protected against heavy rains — perfect for outdoor installation in harsh weather environments. These hybrid inverters intelligently manage energy from solar panels, batteries and the utility grid to keep your home or business powered, reduce electricity costs, and provide dependable backup during outages.
🌟 Key Features
✔ IP66 Weatherproof & Dustproof Outdoor Rating
✔ Hybrid Solar + Grid + Battery Management
✔ Dual MPPT Trackers for Maximum Solar Harvest
✔ High Efficiency up to ~97.6%
✔ Unity Power Factor Output (1.0)
✔ Wide DC Voltage Input Range
✔ Scalable & Expandable System Architecture
✔ Smart LCD Monitoring (Real-Time System Status)
✔ Advanced Protection: SCP, OVP, OCP, RCD, Reverse Polarity
✔ 5 Years Easy Replacement Warranty
✔ Ideal for Home, Office & Business Solar Systems
📊 Technical Specifications Table
| Specification | Crown Nexus 6kW IP66 | Crown Nexus 8kW IP66 |
|---|---|---|
| Rated AC Power | 6000W | 8000W |
| Max DC Input Power | 12000W | 16000W |
| MPPT Voltage Range | 150–450 V | (Likely similar — based on model class) |
| DC Starting Voltage | 125 V | (Class standard) |
| Max DC Voltage | 500 V | (Class standard) |
| MPPT Trackers | 2 | 2 |
| Max DC Current | 36 A | (Typically scaled up) |
| Max AC Current | 27 A | (Scaled for 8kW) |
| Max Efficiency | ~97.6% | ~97%+ |
| Power Factor | 1.0 (Unity) | 1.0 (Unity) |
| Protection Rating | IP66 | IP66 |
| Operating Temperature | –25 °C to +60 °C | –25 °C to +60 °C |
| Cooling | Natural | Natural |
| Mounting Altitude | Up to 4000 m | Up to 4000 m |
| Monitoring | LCD + Optional Connectivity | LCD + Optional Connectivity |
| Warranty | 5 Years Replacement | 5 Years Replacement |
🧠 Smart Monitoring & Control
✔ Real-Time Display of Solar, Battery & Load Data
✔ System Status, Alerts & Fault Codes
✔ Optional App / Software Monitoring (via communication ports)
🔌 Applications
🌞 Residential Solar Installations
🏠 Offices & Shops with Backup Power Needs
🏭 Small Commercial Hybrid Systems
⚡ Backup Power for Frequent Outages
🔋 Systems Requiring Robust Outdoor Protection
❓ Frequently Asked Questions (FAQs)
1️⃣ What does IP66 rating mean?
IP66 means the inverter is fully protected against dust and powerful water jets — ideal for outdoor installations.
2️⃣ Can these inverters be installed outdoors?
Yes — the IP66 rating allows installation outdoors without weather enclosure.
3️⃣ What sizes are available in the Nexus series?
The series includes 6kW (PV12000) and 8kW (PV16000) models with 5-year warranty.
4️⃣ Can the inverter manage solar, grid & battery at the same time?
Yes — this is a true hybrid inverter that balances all three power sources intelligently.
5️⃣ What batteries are compatible?
Compatible with 48 V Lithium (LiFePO4 / Li-ion) or Lead-Acid / GEL batteries (typical hybrid class).
6️⃣ What does 12000W or 16000W PV mean?
It refers to the maximum recommended solar panel power you can connect to the 6kW or 8kW inverter.
| Model |
PV12000 ,PV16000 |
|---|
