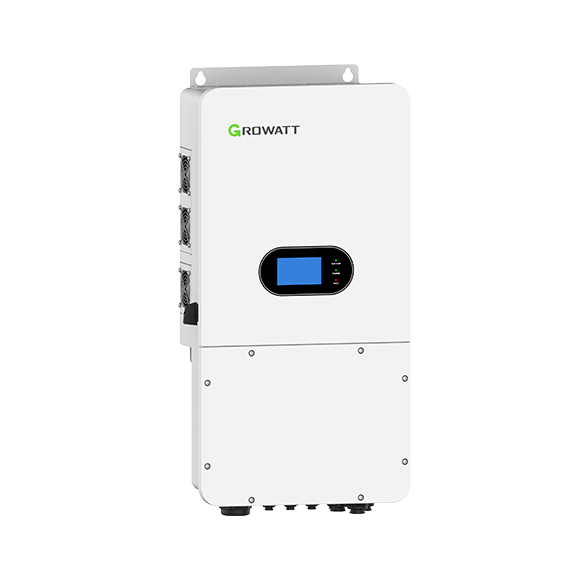

Growatt 10kW Hybrid Inverter (Single Phase IP65)

The SPH 10000TL-HU is a high-performance 10kW single-phase hybrid inverter designed for residential and small commercial solar systems. With IP65 outdoor protection, advanced 3 MPPT design, and up to 200A battery charging/discharging, it delivers powerful, reliable energy management.

This inverter supports DC-coupled, AC-coupled, and retrofit applications, making it ideal for new installations and system upgrades.

Backed by a 10-Year Warranty, it ensures long-term peace of mind.

🔹 Key Features

✔ 10kW Single Phase Hybrid Inverter
✔ IP65 Weatherproof (Outdoor Installation Ready)
✔ 10 Years Manufacturer Warranty
✔ 3 MPPT Trackers (1.5 DC/AC Ratio)
✔ Max Recommended PV Power: 15,000W
✔ UPS Function with <10ms Transfer Time
✔ Up to 200A Battery Charge/Discharge Current
✔ Supports Lithium & Lead-Acid Batteries
✔ Generator Charging Support
✔ Type II Surge Protection (DC & AC)
✔ Parallel Operation up to 6 Units
✔ Can Form 400V Three-Phase System
✔ WiFi Monitoring + LCD Display
✔ Smart Cooling System

📊 Technical Specifications

🔆 Input Data (DC – Solar Side)

Specification	Value
Max Recommended PV Power	15000W
Max DC Voltage	525V
Start Voltage	150V
MPPT Voltage Range	150V – 450V
No. of MPPT Trackers	3
PV Strings per MPPT	2
Max Input Current per MPPT	22A
Max Short Circuit Current per MPPT	28A
MPPT Efficiency	≥99.5%

⚡ Output Data (AC – Grid Side)

Specification	Value
AC Nominal Power	10000W
Max Apparent Power	10000VA
Nominal Voltage	220V / 230V / 240V
Grid Frequency	50Hz / 60Hz
Max Output Current	50A
Power Factor	0.8 Leading – 0.8 Lagging
THDi	<3%
Grid Connection	Single Phase

🔋 Battery Data (DC)

Specification	Value
Battery Voltage Range	40V – 60V
Battery Type	Lithium / Lead-Acid
Max Charge/Discharge Current	200A
Continuous Charge/Discharge Power	10000W

🔌 Backup Power (EPS Output)

Specification	Value
AC Output Power	10000W
Output Voltage	220V / 230V / 240V
Output Frequency	50Hz / 60Hz
Switch Time	<10ms (UPS Level)

⚙ Efficiency

Specification	Value
Peak Efficiency	97.5%
CEC Weighted Efficiency	96.7%

🛡 Protection Features

✔ DC Type II Surge Protection
✔ AC Type II Surge Protection
✔ Anti-Islanding Protection
✔ Ground Fault Monitoring
✔ Grid Monitoring
✔ Insulation Resistance Monitoring
✔ Residual Current Monitoring Unit
✔ AC Over-Voltage & Over-Current Protection
✔ PV Switch

🏗 General Specifications

Specification	Value
Protection Degree	IP65
Cooling	Smart Cooling
Noise Level	≤60 dB(A)
Topology	Transformerless
Operating Temperature	–25°C to +60°C
Max Altitude	2000m
Relative Humidity	0–100%
Dimensions (W×H×D)	440 × 883 × 254 mm
Weight	48.84 kg
Display	LCD
Communication	WiFi, RS485, CAN, USB
Max Parallel Units	6

🌟 Why Choose Growatt ?

✔ Ideal for large homes & commercial setups
✔ High PV input (15kW solar support)
✔ Massive 200A battery current support
✔ Generator compatibility
✔ Outdoor-ready IP65 design
✔ Expandable to 3-phase system
✔ Reliable global inverter brand

❓ FAQs

1️⃣ Can this inverter run heavy loads like AC and motors?

Yes, with 10kW output and 50A current capacity, it supports heavy residential loads.

2️⃣ Does it support lithium batteries?

Yes, compatible with Lithium and Lead-Acid batteries (40–60V range).

3️⃣ Can I connect it with a generator?

Yes, generator charging is supported.

4️⃣ How fast is the backup switch?

It has UPS-level switching time of less than 10ms.

5️⃣ Can multiple units be connected?

Yes, up to 6 units can be connected in parallel.

6️⃣ Is it suitable for outdoor installation?

Yes, IP65 rating makes it dustproof and water-resistant.
