Inverex Nitrox 12KW Hybrid Solar Inverter | 48V | Three Phase | IP65 | 240A MPPT
Original price was: ₨ 795,000.00.₨ 764,999.00Current price is: ₨ 764,999.00.
Buy Inverex Nitrox 12KW hybrid solar inverter with 240A MPPT, 15,600W PV input, IP65 protection, zero export, smart monitoring & 5-year warranty. Ideal for commercial and residential solar systems.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.

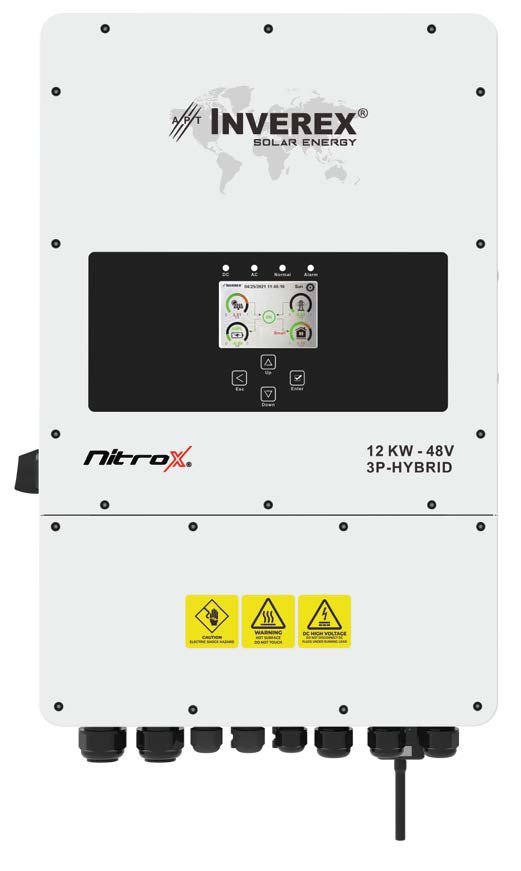

The Inverex Nitrox 12KW – 48V Hybrid Solar Inverter is a powerful, next-generation three-phase inverter designed for high-demand residential, commercial, and industrial solar systems. With an impressive 15,600W PV input, 240A charging capability, and advanced MPPT technology, it delivers unmatched efficiency, stability, and smart energy management.
This inverter supports parallel operation, zero export functionality, and generator integration, making it ideal for both on-grid and off-grid applications. Its IP65-rated enclosure ensures reliable performance even in harsh outdoor environments, while built-in safety protections such as SPD, AC breaker, arc fault detection, and anti-islanding provide maximum system security.
Featuring a user-friendly touch screen, dual three-phase output, and smart PV monitoring platform, the Inverex Nitrox 12KW empowers users to monitor, control, and optimize energy usage with precision. The six TOU settings allow intelligent scheduling to significantly reduce electricity costs.
⚙ Key Features
Rated Power: 12KW (Three Phase)
High PV Capacity: 15,600W
240A Solar Charging Current
Supports Lead-Acid & Li-Ion Batteries
Parallel Expansion Support
Zero Export Control
Smart Stick Logger Monitoring
Touch Screen Interface
IP65 Weatherproof Design
Built-in SPD & AC Breaker
Generator & Grid Compatible
Six Time-of-Use (TOU) Modes
High Surge Endurance
Advanced Protection Mechanisms

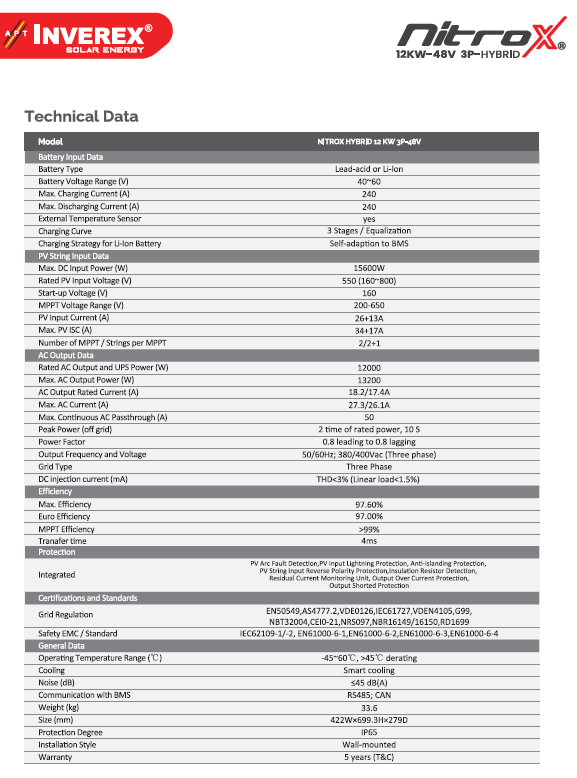

📊 Technical Specifications
🔋 Battery Input Data
| Specification | Value |
|---|---|
| Battery Type | Lead-Acid / Li-Ion |
| Battery Voltage Range | 40 – 60 V |
| Max Charging Current | 240 A |
| Max Discharging Current | 240 A |
| External Temperature Sensor | Yes |
| Charging Curve | 3 Stages / Equalization |
| Li-Ion Charging Strategy | Self-Adaption to BMS |
☀ PV String Input Data
| Specification | Value |
|---|---|
| Max DC Input Power | 15,600 W |
| Rated PV Input Voltage | 550 V (160 – 800 V) |
| Start-up Voltage | 160 V |
| MPPT Voltage Range | 200 – 650 V |
| PV Input Current | 26A + 13A |
| Max PV ISC | 34A + 17A |
| MPPT / Strings | 2 MPPT / (2 + 2 Strings) |
🔄 AC Output Data
| Specification | Value |
|---|---|
| Rated AC Output Power | 12,000 W |
| Max AC Output Power | 13,200 W |
| Rated AC Current | 18.2A / 17.44A |
| Max AC Current | 27.3A / 26.14A |
| Continuous AC Passthrough | 50 A |
| Peak Power (Off-grid) | 2× Rated Power |
| Power Factor | 0.8 Leading to 0.8 Lagging |
| Output Voltage & Frequency | 380/400V, 50/60Hz |
| Grid Type | Three Phase |
| THD | <3% |
⚡ Efficiency
| Specification | Value |
|---|---|
| Max Efficiency | 97.6% |
| Euro Efficiency | 97.0% |
| MPPT Efficiency | >99% |
| Transfer Time | 4 ms |
🛡 Protection Features
PV Arc Fault Detection
PV Input Lightning Protection
Anti-Islanding Protection
Reverse Polarity Protection
Insulation Resistance Detection
Residual Current Monitoring
Output Overcurrent & Short Circuit Protection
📐 General Data
| Specification | Value |
|---|---|
| Operating Temperature | -45°C to 60°C (Derating above 45°C) |
| Cooling | Smart Cooling |
| Noise Level | ≤ 45 dB(A) |
| Communication | RS485 / CAN |
| Weight | 33.6 kg |
| Dimensions | 422 × 699.3 × 279 mm |
| Protection Degree | IP65 |
| Installation | Wall Mounted |
📦 What’s in the Box
1 × Inverex Nitrox 12KW Hybrid Solar Inverter
1 × Smart Stick Logger
1 × User Manual
1 × Wall Mounting Kit
1 × Warranty Card
🛡 Warranty & Support
✅ 5 Years Official Inverex Warranty (Terms & Conditions Apply)
Covers manufacturing defects
Professional service support available nationwide
