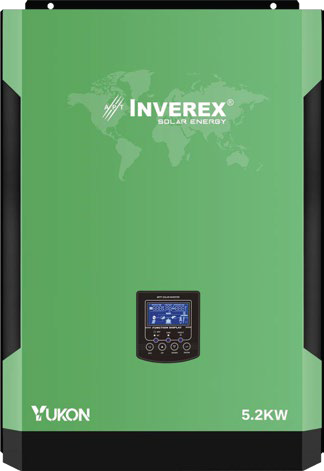

Inverex Yukon 5.2KW Solar Inverter – Pure Sine Wave, 80A MPPT, Works Without Battery, Wall-Mounted
Original price was: ₨ 169,999.00.₨ 99,999.00Current price is: ₨ 99,999.00.
Buy Inverex Yukon 5.2KW Solar Inverter with pure sine wave output, 80A MPPT, wide PV input, battery-less operation & 5-year warranty. Ideal for home & commercial solar systems.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
The Inverex Yukon 5.2KW Solar Inverter is a high-performance, next-generation solar inverter designed to deliver reliable and uninterrupted power for residential and commercial solar systems. With its pure sine wave output, powerful 80A MPPT solar charger, and ability to operate without batteries, the Yukon series ensures maximum efficiency and flexibility.
Its wide PV input range allows compatibility with modern high-voltage solar panels, while intelligent power management enables seamless switching between solar, battery, grid, and generator sources. The compact wall-mounted design with a built-in anti-dust kit makes it durable and easy to install in various environments.
Whether you’re upgrading an existing system or installing a new solar setup, the Inverex Yukon 5.2KW offers performance, reliability, and smart energy control.
⚡ Key Features
Rated Power: 5200VA / 5200W
Pure Sine Wave Output (Safe for Sensitive Electronics)
80A MPPT Solar Charger for Faster & Efficient Charging
Works Without Battery (Direct Solar Operation)
Generator & Grid Compatible
Fast Transfer Time (10ms for PCs, 20ms for Home Appliances)
High Conversion Efficiency up to 98%
USB / RS232 Monitoring Support
Wall-Mount Installation
Built-in Anti-Dust Protection
📊 Technical Specifications
🔌 Rated Power
| Specification | Value |
|---|---|
| Rated Power | 5200VA / 5200W |
| Surge Power | 10000VA |
🔋 Input
| Specification | Value |
|---|---|
| AC Voltage | 230 VAC |
| Selectable Voltage Range | 170–280 VAC (PCs) / 90–280 VAC (Home Appliances) |
| Frequency Range | 50Hz / 60Hz (Auto Sensing) |
🔄 Output
| Specification | Value |
|---|---|
| AC Voltage Regulation | 230VAC ±5% |
| Transfer Time | 10 ms (PCs), 20 ms (Home Appliances) |
| Waveform | Pure Sine Wave |
| Efficiency (PV to Inverter) | 97% |
| Efficiency (Battery to Inverter) | 94% |
🔋 Battery & AC Charger
| Specification | Value |
|---|---|
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Max AC Charging Current | 60A |
☀ Solar Charger
| Specification | Value |
|---|---|
| Max PV Array Power | 5000W |
| MPPT Voltage Range | 120 – 450 VDC |
| Max PV Open Circuit Voltage | 500 VDC |
| Max Charging Current | 80A |
| MPPT Efficiency | 98% |
🧱 Physical
| Specification | Value |
|---|---|
| Dimensions (D × W × H) | 100 × 300 × 440 mm |
| Net Weight | 9 kg |
| Installation | Wall Mounted |
| Communication Interface | USB / RS232 |
🌡 Operating Environment
| Specification | Value |
|---|---|
| Operating Temperature | 0°C – 55°C |
| Storage Temperature | -15°C – 60°C |
| Humidity | 5% – 95% (Non-condensing) |
📦 What’s in the Box
1 × Inverex Yukon 5.2KW Solar Inverter
1 × User Manual
1 × Wall Mounting Kit
1 × Warranty Card
🛡 Warranty & Support
✅ 5 Years Official Inverex Warranty
2 Years Replacement Warranty
3 Years Service Warranty
Warranty covers manufacturing defects only
Physical damage or misuse not covered
