Xerox G4 Pro Series 100kW–125kW Three Phase Solar Inverter | Industrial-Grade Power & Smart Protection

Models

• G4 Pro 100K-LV

• G4 Pro 110K-LV

• G4 Pro 125K-LV

🚀 Product Overview

The Xerox G4 Pro Series is a high-performance three-phase solar inverter designed for large commercial and industrial (C&I) solar installations. With up to 99.0% efficiency, AFCI built-in safety, and IP66 outdoor protection, the G4 Pro Series delivers maximum energy yield, superior reliability, and long-term ROI even in extreme environments.

Engineered for easy installation, smart monitoring, and zero derating at 45°C, this inverter is ideal for factories, solar farms, warehouses, malls, and utility-scale projects.

🏷️ Product Category

Solar Inverters → Three Phase On-Grid Solar Inverters → Commercial & Industrial Inverters

⭐ Key Benefits (Power Words)

✔ Ultra-High Efficiency up to 99.0%
✔ Industrial-Grade Safety with Built-in AFCI
✔ 150% DC Oversizing for Maximum Solar Yield
✔ No Power Derating up to 45°C
✔ IP66 + Optional C5 Anti-Corrosion Protection
✔ Smart Monitoring with String-Level Control
✔ Lightweight, Compact & Easy to Install

🔒 Safety, Reliability & Protection

• Built-in AFCI (Arc Fault Circuit Interrupter)

• Type II SPD on AC & DC sides (Type I + II optional)

• Fuse-free design for reduced maintenance

• Residual current & insulation resistance monitoring

• Anti-islanding & grid protection

• Emergency power off & rapid shutdown support

• Optional PID recovery & reactive power at night

⚙️ Smart Control & Monitoring

• String-level monitoring

• Remote & onsite firmware upgrades

• LED indicators + optional LCD

• WiFi, LAN, 4G, PLC communication (optional)

• Modbus-RTU (SunSpec compliant)

• Mobile App monitoring

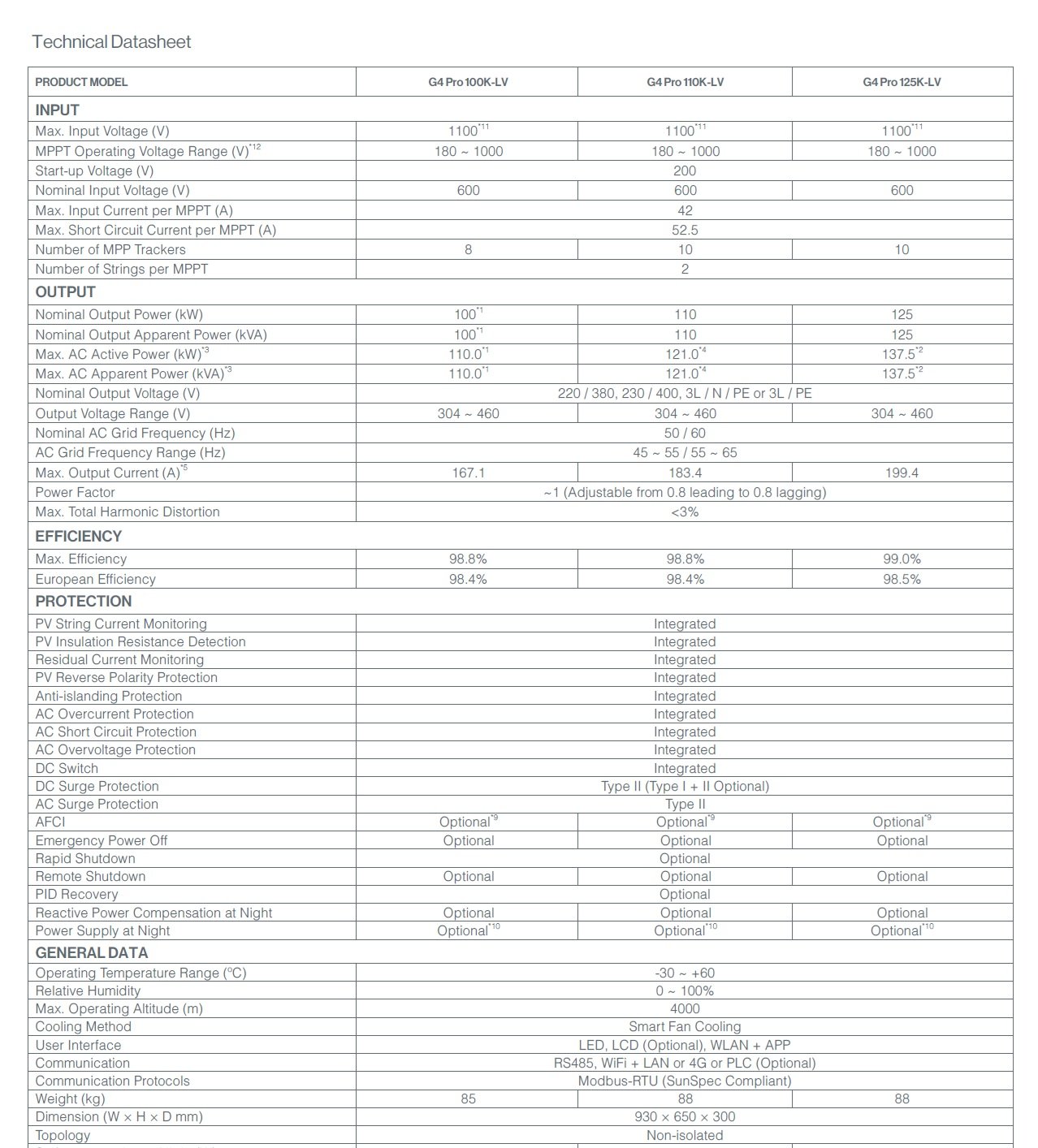

📊 Technical Specifications Table

Input (DC)

Output (AC)

Efficiency

General & Physical

🌍 Ideal Applications

• Industrial factories

• Commercial buildings

• Solar power plants

• Warehouses & logistics hubs

• Malls & business parks

• Utility-scale PV projects

❓ Frequently Asked Questions (FAQs)

1. What size solar systems are suitable for Xerox G4 Pro Series?

The G4 Pro Series is ideal for 100kW to 125kW commercial and industrial solar systems, including large rooftop and ground-mounted projects.

2. Does the Xerox G4 Pro inverter support AFCI protection?

Yes, AFCI (Arc Fault Circuit Interrupter) is built-in, enhancing fire safety and meeting international standards.

3. Can this inverter work in extreme heat conditions?

Absolutely. The inverter offers no power derating up to 45°C and operates reliably up to 60°C.

4. Is the inverter suitable for outdoor installation?

Yes. With IP66 protection and optional C5 anti-corrosion coating, it is perfect for harsh outdoor environments.

5. What monitoring options are available?

It supports WiFi, LAN, 4G, PLC, and mobile app monitoring, with string-level performance tracking.

6. Does the G4 Pro Series allow PV oversizing?

Yes. It supports 150% DC oversizing and 110% AC overloading for maximum energy harvest.

7. Is remote firmware upgrade supported?

Yes. The inverter supports remote and onsite firmware upgrades, reducing maintenance costs.

8. What certifications does this inverter comply with?

It complies with major IEC and grid standards (certificates available upon request).
