Knox Krypton 12002 / 13002 / 15002 Hybrid Solar Inverter | Dual MPPT | Batteryless | Grid Feeding | IP Protection
Price range: ₨ 254,999.00 through ₨ 284,999.00
Knox Krypton 12002 / 13002 / 15002 Hybrid Solar Inverter with dual MPPT, batteryless operation, grid feeding, built-in WiFi, 7” touch screen & parallel up to 6 units.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.

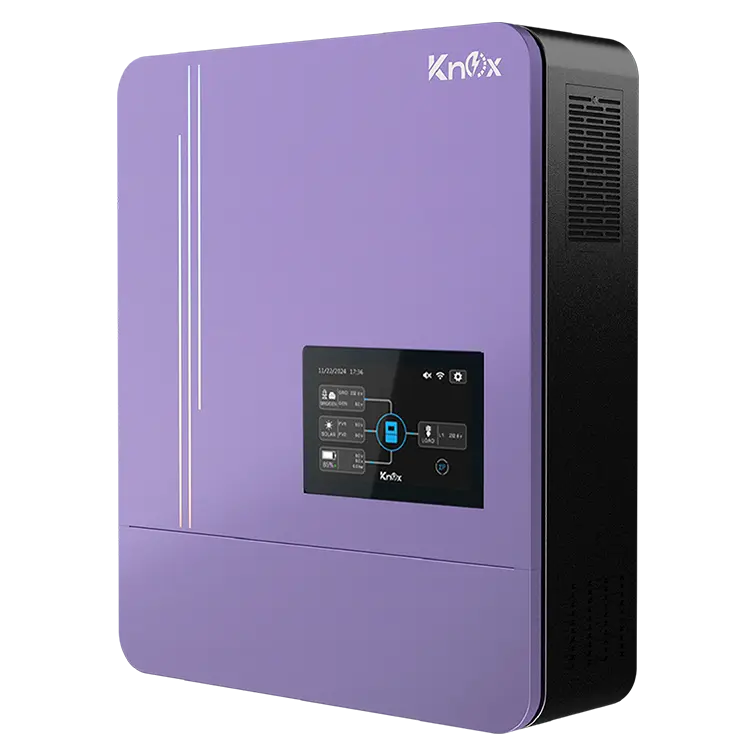

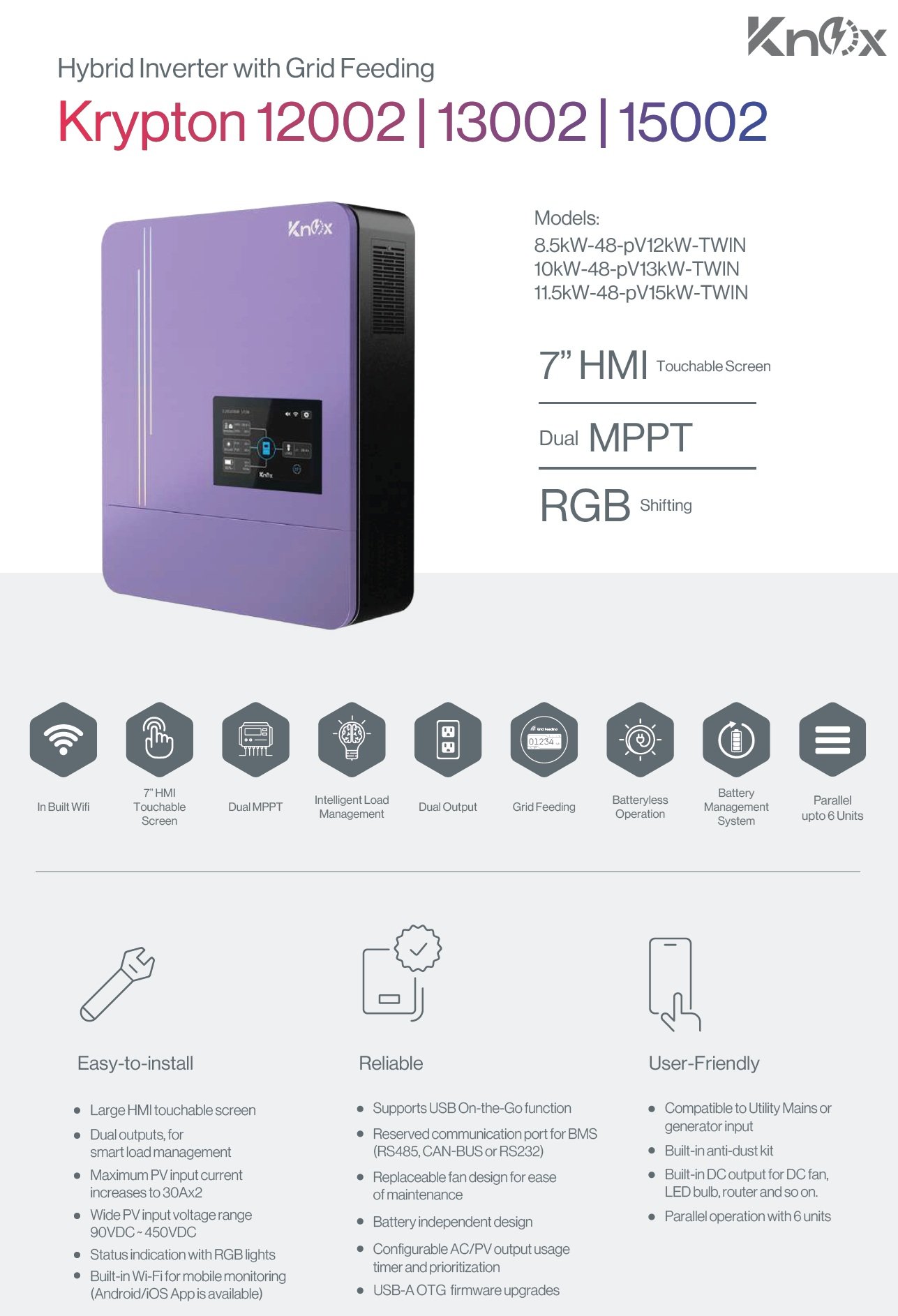

Knox Krypton 12002 / 13002 / 15002 Hybrid Solar Inverter
Knox Krypton hybrid solar inverter with dual MPPT, batteryless operation, grid feeding, built-in WiFi, 7” touch screen & parallel up to 6 units.
⭐ Short Product Summary
The Knox Krypton Series is a smart, battery-ready hybrid inverter designed for homes, shops, offices, and small commercial solar systems. With dual MPPT, batteryless operation, intelligent load management, and built-in WiFi, it delivers maximum solar efficiency with complete control.
🔥 Key Features & Benefits
-
✅ Batteryless Operation (Runs directly on PV + Grid)
-
✅ Dual MPPT (30A × 2) for high-power solar panels
-
✅ Grid Feeding with Built-in WiFi Monitoring
-
✅ 7” Large Touchable HMI Display
-
✅ Dual Output for Intelligent Load Management
-
✅ Parallel Operation up to 6 Units
-
✅ Wide PV Voltage Range (90V – 450V)
-
✅ RGB Status Indicator Lights
-
✅ USB-A OTG Firmware Upgrade Support
-
✅ Built-in DC Output (DC fan, LED, router, etc.)
-
✅ Generator & Utility Compatible
-
✅ Anti-Dust Kit & Replaceable Cooling Fan
-
✅ Pure Sine Wave Output
📦 Available Models
| Model Name | Rated Output | Max PV Input |
|---|---|---|
| Krypton 12002 | 8.5 kW | 12 kW |
| Krypton 13002 | 10.0 kW | 13 kW |
| Krypton 15002 | 11.5 kW | 15 kW |

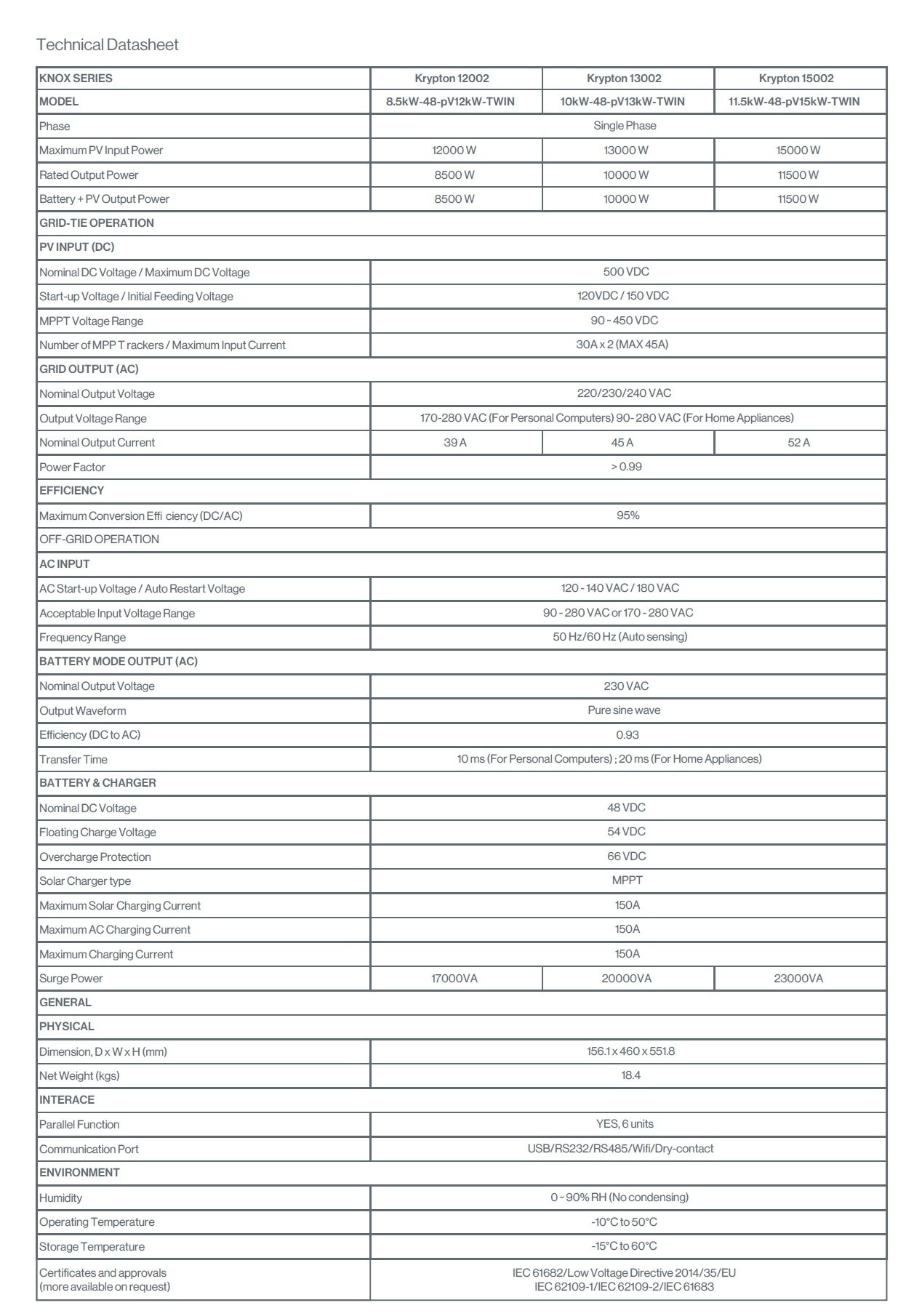

⚡ Technical Specifications
General Information
| Parameter | Specification |
|---|---|
| Series | Knox Krypton |
| Phase | Single Phase |
| MPPT | Dual MPPT |
| Parallel Support | Up to 6 Units |
| Display | 7” HMI Touch Screen |
| Output Waveform | Pure Sine Wave |
| Power Factor | > 0.99 |
| Cooling | Replaceable Fan |
| Monitoring | Built-in WiFi (Android / iOS App) |
PV Input (DC)
| Parameter | Value |
|---|---|
| Max PV Input Power | 12kW / 13kW / 15kW |
| Max DC Voltage | 500 VDC |
| Start-up Voltage | 120 VDC |
| MPPT Voltage Range | 90 – 450 VDC |
| MPPT Trackers | 2 |
| Max Input Current | 30A × 2 (45A max) |
AC Output (Grid & Load)
| Parameter | Value |
|---|---|
| Nominal Output Voltage | 220 / 230 / 240 VAC |
| Output Voltage Range | 90 – 280 VAC / 170 – 280 VAC (Selectable) |
| Nominal Output Current | 39A / 45A / 52A |
| Rated Output Power | 8.5kW / 10kW / 11.5kW |
| Surge Power | 17kVA / 20kVA / 23kVA |
| Frequency | 50 / 60 Hz (Auto Sensing) |
| Transfer Time | 10 ms (PCs) / 20 ms (Appliances) |
Battery & Charging
| Parameter | Value |
|---|---|
| Battery Voltage | 48 VDC |
| Battery Voltage Range | 40 – 60 VDC |
| Floating Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Max Charging Current | 150 A |
| Charger Type | MPPT |
| Battery Type | Lithium & Lead-Acid |
Communication & Interface
| Interface | Supported |
|---|---|
| Communication Ports | USB, RS232, RS485, WiFi, Dry Contact |
| BMS Communication | RS485 / CAN-Bus / RS232 |
| Firmware Upgrade | USB-A OTG |
Physical & Environmental
| Parameter | Value |
|---|---|
| Dimensions (D×W×H) | 156.1 × 460 × 551.8 mm |
| Net Weight | ~18.4 kg |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -15°C to +60°C |
| Humidity | 0 – 90% RH (Non-condensing) |
🛡️ Certifications & Compliance
-
IEC 61682
-
IEC 62109-1 / IEC 62109-2
-
IEC 61683
-
Low Voltage Directive 2014/35/EU
❓ Frequently Asked Questions
Q1: Can Knox Krypton run without batteries?
Yes, it supports batteryless operation, running directly on solar and grid.
Q2: How many inverters can be connected in parallel?
Up to 6 units can be connected for higher power demand.
Q3: Does it support lithium batteries?
Yes, it supports lithium and lead-acid batteries via BMS communication.
Q4: Is mobile monitoring available?
Yes, built-in WiFi supports mobile monitoring via Android & iOS apps.
Q5: Is this inverter suitable for home and commercial use?
Absolutely. It is ideal for homes, offices, shops, and small commercial systems.
| Model | Krypton 12002, Krypton 13002, Krypton 15002 |
|---|
