Knox Krypton 9000 Hybrid Solar Inverter 6.2kW | High Current MPPT | Batteryless | Grid Feeding | WiFi Monitoring | 3 Years Warranty
Original price was: ₨ 169,999.00.₨ 147,999.00Current price is: ₨ 147,999.00.
Knox Krypton 9000 hybrid inverter with 30A MPPT (40A Isc), batteryless operation, grid feeding, built-in WiFi, DC output & parallel up to 9 units. With 3 Years Warranty
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.

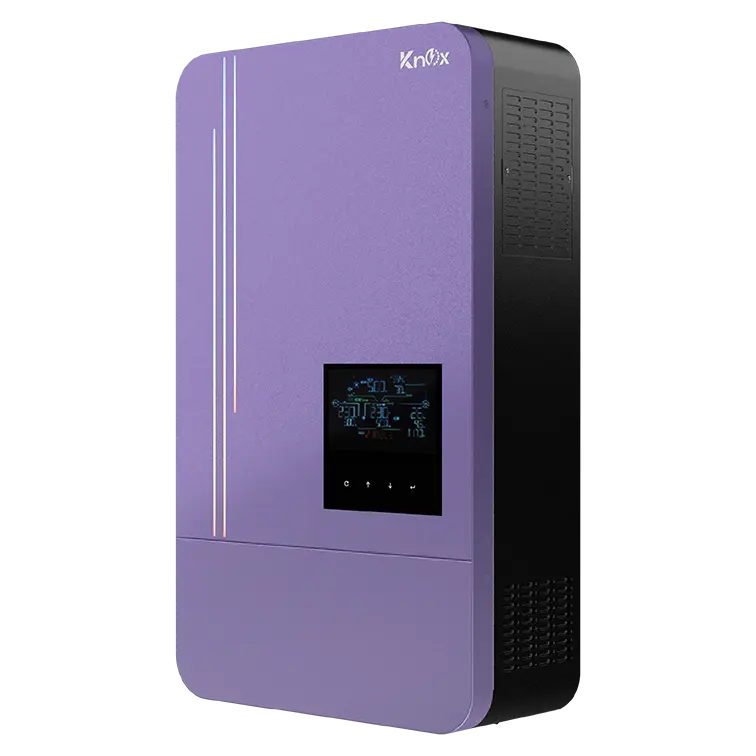

Knox Krypton 9000
Knox Krypton 9000 hybrid inverter with 30A MPPT (40A Isc), batteryless operation, grid feeding, built-in WiFi, DC output & parallel up to 9 units.
⭐ Short Product Description
The Knox Krypton 9000 is a powerful hybrid solar inverter designed for high-current solar panels, offering battery-independent operation, grid feeding, intelligent load management, and parallel scalability. Ideal for residential and commercial solar systems requiring efficiency and reliability.

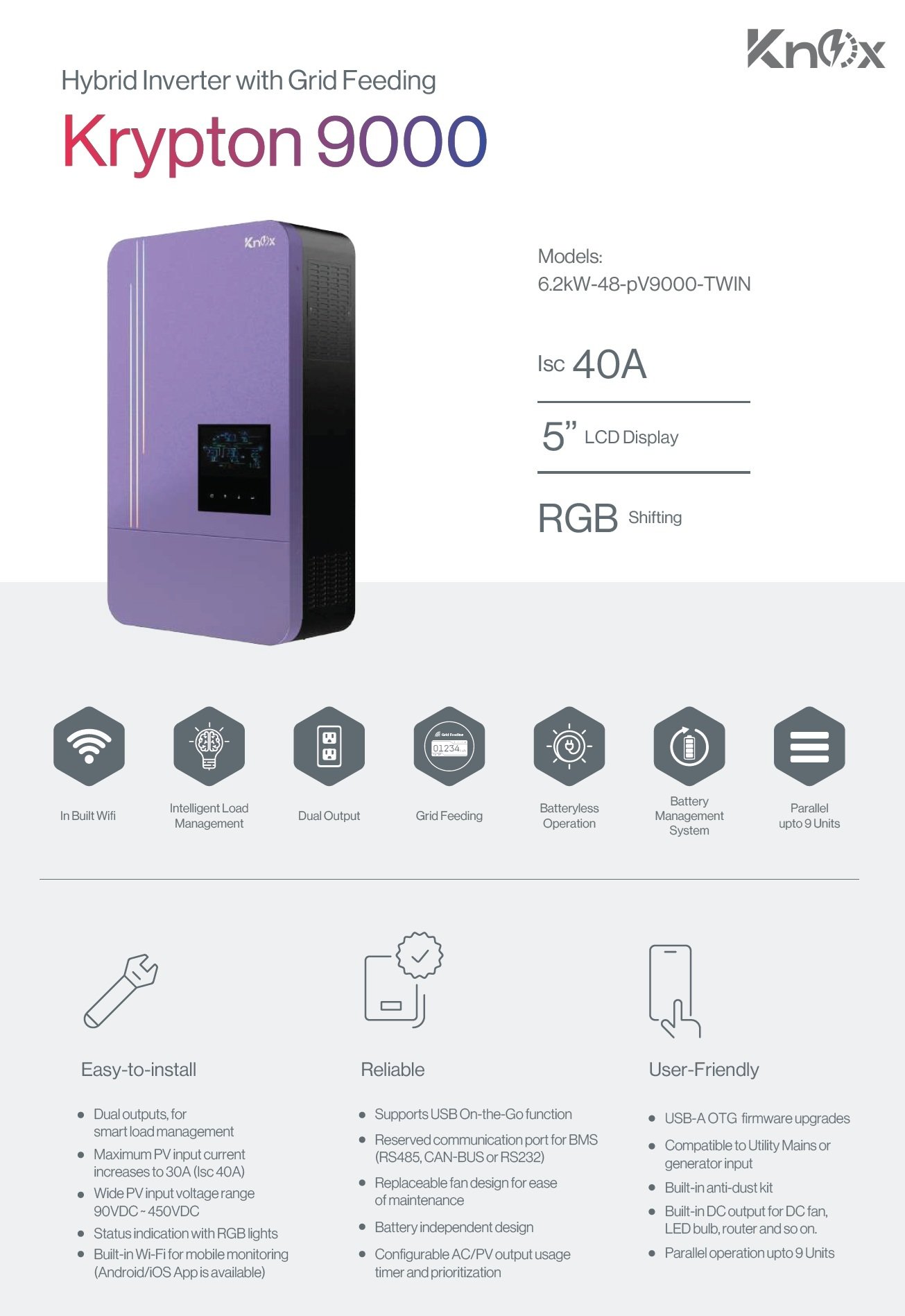

🔥 Key Features & Highlights
-
✅ Batteryless Operation (Works with or without batteries)
-
✅ High Current MPPT – 30A (Isc 40A)
-
✅ Maximum PV Power up to 9000W
-
✅ Dual Output for Smart Load Management
-
✅ Parallel Operation up to 9 Units
-
✅ Built-in WiFi Monitoring (Android & iOS)
-
✅ USB-A OTG Firmware Upgrades
-
✅ 5” LCD Display with RGB Status Lights
-
✅ Built-in DC Output (DC fan, LED bulb, router)
-
✅ Compatible with Utility Grid & Generator
-
✅ Replaceable Fan & Anti-Dust Kit
-
✅ Pure Sine Wave Output
-
✅ Reserved BMS Port (RS485 / CAN / RS232)

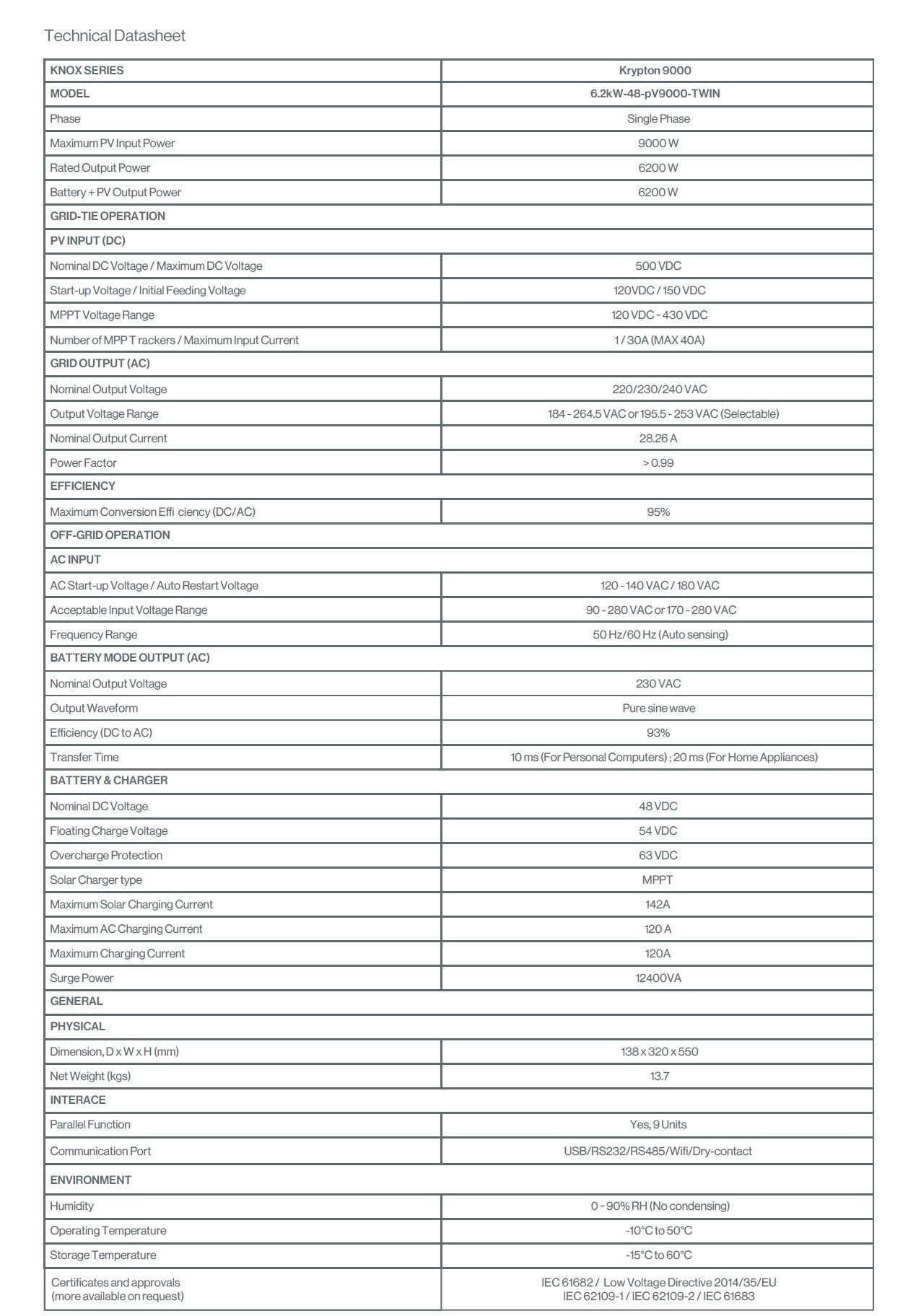

⚡ Technical Specifications – Knox Krypton 9000
🔹 General Information
| Parameter | Specification |
|---|---|
| Brand | Knox |
| Series | Krypton |
| Model | 6.2kW-48-pV9000-TWIN |
| Phase | Single Phase |
| Inverter Type | Hybrid with Grid Feeding |
| Display | 5” LCD |
| Parallel Capability | Up to 9 Units |
| Output Waveform | Pure Sine Wave |
☀️ PV Input (DC)
| Parameter | Value |
|---|---|
| Maximum PV Input Power | 9000 W |
| Nominal / Max DC Voltage | 500 VDC |
| Start-up Voltage | 120 VDC |
| Initial Feeding Voltage | 150 VDC |
| MPPT Voltage Range | 120 – 430 VDC |
| MPPT Trackers | 1 |
| Maximum Input Current | 30 A (Isc 40 A) |
🔌 AC Output (Load & Grid)
| Parameter | Value |
|---|---|
| Rated Output Power | 6200 W |
| Battery + PV Output Power | 6200 W |
| Nominal Output Voltage | 220 / 230 / 240 VAC |
| Output Voltage Range | 184–264.5 VAC / 195.5–253 VAC |
| Nominal Output Current | 28.26 A |
| Power Factor | > 0.99 |
| Frequency | 50 / 60 Hz (Auto Sensing) |
| Surge Power | 12400 VA |
| Transfer Time | 10 ms (PCs) / 20 ms (Appliances) |
🔋 Battery & Charging
| Parameter | Value |
|---|---|
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Solar Charger Type | MPPT |
| Max Solar Charging Current | 142 A |
| Max AC Charging Current | 120 A |
| Maximum Charging Current | 120 A |
| Battery Support | Lithium & Lead-Acid |
| BMS Communication | RS485 / CAN / RS232 |
🌐 Communication & Monitoring
| Feature | Support |
|---|---|
| Built-in WiFi | Yes |
| Mobile App | Android & iOS |
| Communication Ports | USB / RS232 / RS485 / WiFi / Dry Contact |
| Firmware Upgrade | USB-A OTG |
| DC Output | Yes (Fan, LED, Router, etc.) |
🧱 Physical & Environmental
| Parameter | Value |
|---|---|
| Dimensions (D × W × H) | 138 × 320 × 550 mm |
| Net Weight | 12 – 13.7 kg |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -15°C to +60°C |
| Humidity | 0 – 90% RH (Non-condensing) |
🛡️ Certifications & Compliance
-
IEC 61682
-
IEC 62109-1
-
IEC 62109-2
-
IEC 61683
-
Low Voltage Directive 2014/35/EU
❓ Frequently Asked Questions
Q1: Can Knox Krypton 9000 run without batteries?
Yes, it supports battery-independent (batteryless) operation.
Q2: What makes Krypton 9000 special?
Its high MPPT current (30A / Isc 40A) makes it ideal for modern high-watt solar panels.
Q3: Does it support parallel operation?
Yes, up to 9 units can be connected in parallel.
Q4: Is WiFi monitoring included?
Yes, built-in WiFi with Android & iOS app support.
Q5: Can it power DC devices directly?
Yes, it includes built-in DC output for small DC loads.
