Knox Krypton 9055 Hybrid Solar Inverter 6.5kW | Dual MPPT | Batteryless | Grid Feeding | WiFi Monitoring | 3 Years Warranty
Original price was: ₨ 180,000.00.₨ 167,999.00Current price is: ₨ 167,999.00.
Knox Krypton 9055 hybrid inverter with dual MPPT, batteryless operation, grid feeding, built-in WiFi, 7” HMI screen & parallel up to 9 units. with 3 Years Warranty
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.

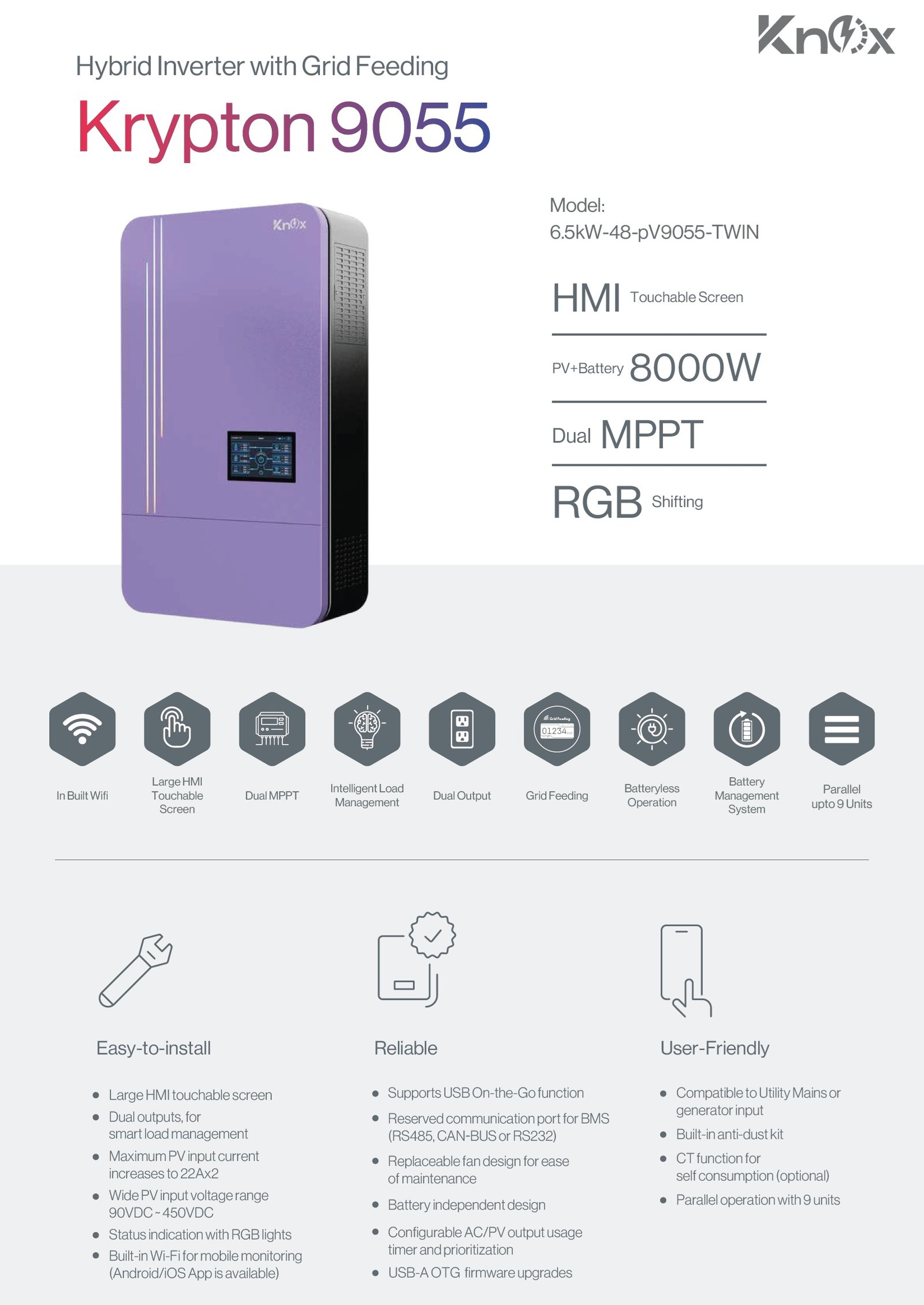

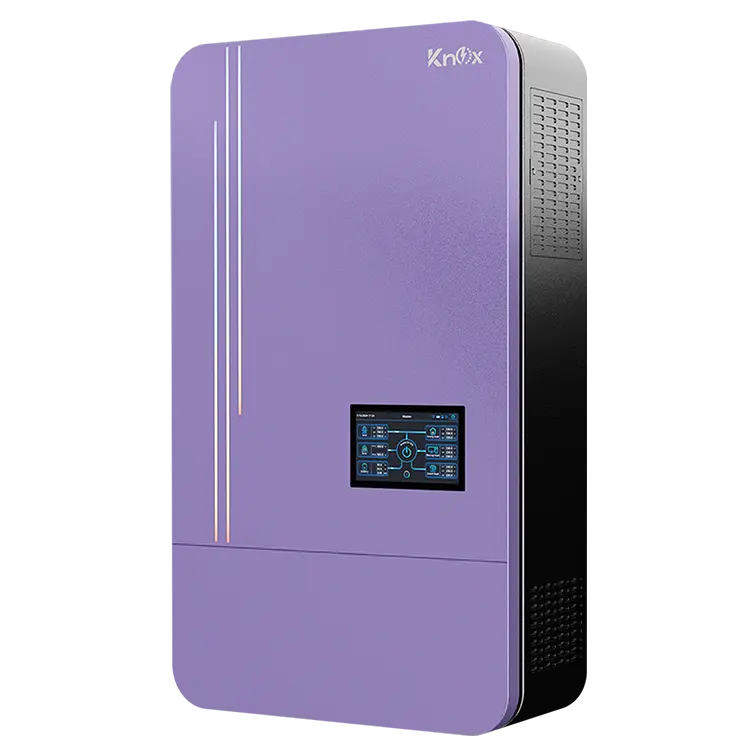

Knox Krypton 9055 hybrid inverter
with dual MPPT, batteryless operation, grid feeding, built-in WiFi, 7” HMI screen & parallel up to 9 units.
⭐ Short Product Description
The Knox Krypton 9055 is a high-performance hybrid solar inverter designed for homes, offices, and commercial solar systems. With dual MPPT, battery-independent operation, intelligent load management, and grid feeding, it delivers maximum solar utilization with smart control.
🔥 Key Features & Benefits
✅ Batteryless Operation (Runs directly on PV + Grid)
✅ Dual MPPT (22A × 2) for high-efficiency solar panels
✅ Battery + PV Output up to 8000W
✅ Parallel Operation up to 9 Units
✅ Dual Output for Smart Load Management
✅ Built-in WiFi Monitoring (Android & iOS App)
✅ 7” Large Touchable HMI Display
✅ RGB Status Indicator Lights
✅ USB-A OTG Firmware Upgrade
✅ CT Function for Self-Consumption (Optional)
✅ Generator & Utility Compatible
✅ Replaceable Cooling Fan & Anti-Dust Kit
✅ Pure Sine Wave Output

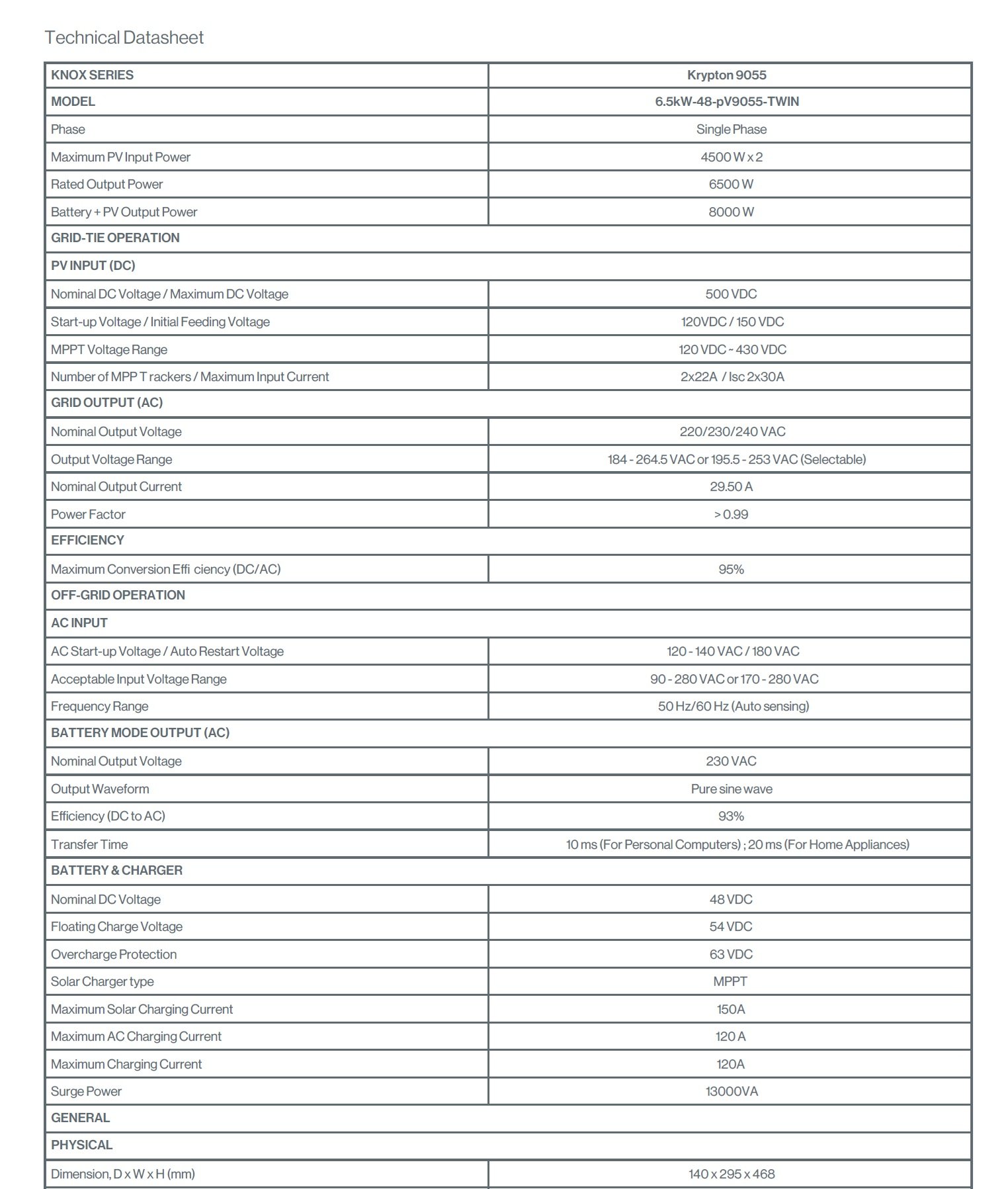

⚡ Technical Specifications
🔹 General Information
| Parameter | Specification |
|---|---|
| Brand | Knox |
| Series | Krypton |
| Model | 6.5kW-48-pV9055-TWIN |
| Phase | Single Phase |
| Inverter Type | Hybrid with Grid Feeding |
| MPPT | Dual MPPT |
| Parallel Support | Up to 9 Units |
| Display | Large HMI Touch Screen |
| Output Waveform | Pure Sine Wave |
☀️ PV Input (DC)
| Parameter | Value |
|---|---|
| Max PV Input Power | 4500W × 2 |
| Max DC Voltage | 500 VDC |
| Start-up Voltage | 120 VDC |
| Initial Feeding Voltage | 150 VDC |
| MPPT Voltage Range | 120 – 430 VDC |
| MPPT Trackers | 2 |
| Max Input Current | 22A × 2 (Isc 30A × 2) |
🔌 AC Output (Grid & Load)
| Parameter | Value |
|---|---|
| Rated Output Power | 6500 W |
| Battery + PV Output | 8000 W |
| Nominal Output Voltage | 220 / 230 / 240 VAC |
| Output Voltage Range | 184–264.5 VAC / 195.5–253 VAC |
| Nominal Output Current | 29.5 A |
| Power Factor | > 0.99 |
| Surge Power | 13000 VA |
| Frequency | 50 / 60 Hz (Auto Sensing) |
| Transfer Time | 10 ms (PCs) / 20 ms (Appliances) |
🔋 Battery & Charging
| Parameter | Value |
|---|---|
| Battery Voltage | 48 VDC |
| Floating Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Max Solar Charging Current | 150 A |
| Max AC Charging Current | 120 A |
| Charger Type | MPPT |
| Battery Type | Lithium & Lead-Acid |
| BMS Communication | RS485 / CAN / RS232 |
🌐 Communication & Monitoring
| Feature | Support |
|---|---|
| Built-in WiFi | Yes |
| Mobile App | Android & iOS |
| Communication Ports | USB, RS232, RS485, WiFi, Dry Contact |
| Firmware Upgrade | USB-A OTG |
🧱 Physical & Environmental
| Parameter | Value |
|---|---|
| Dimensions (D×W×H) | 140 × 295 × 468 mm |
| Weight | 13.5 kg |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -15°C to +60°C |
| Humidity | 0 – 90% RH (Non-condensing) |
🛡️ Certifications & Standards
IEC 61682
IEC 62109-1 / IEC 62109-2
IEC 61683
Low Voltage Directive 2014/35/EU
❓ FAQs
Q1: Can Knox Krypton 9055 work without batteries?
Yes. It supports batteryless operation, running directly on solar and grid.
Q2: How many inverters can be connected together?
Up to 9 units can be connected in parallel.
Q3: Does it support lithium batteries?
Yes, it supports lithium and lead-acid batteries with BMS communication.
Q4: Is WiFi monitoring included?
Yes, built-in WiFi with Android & iOS app support.
Q5: Is it suitable for residential and commercial use?
Absolutely. Ideal for homes, offices, shops, and solar businesses.
