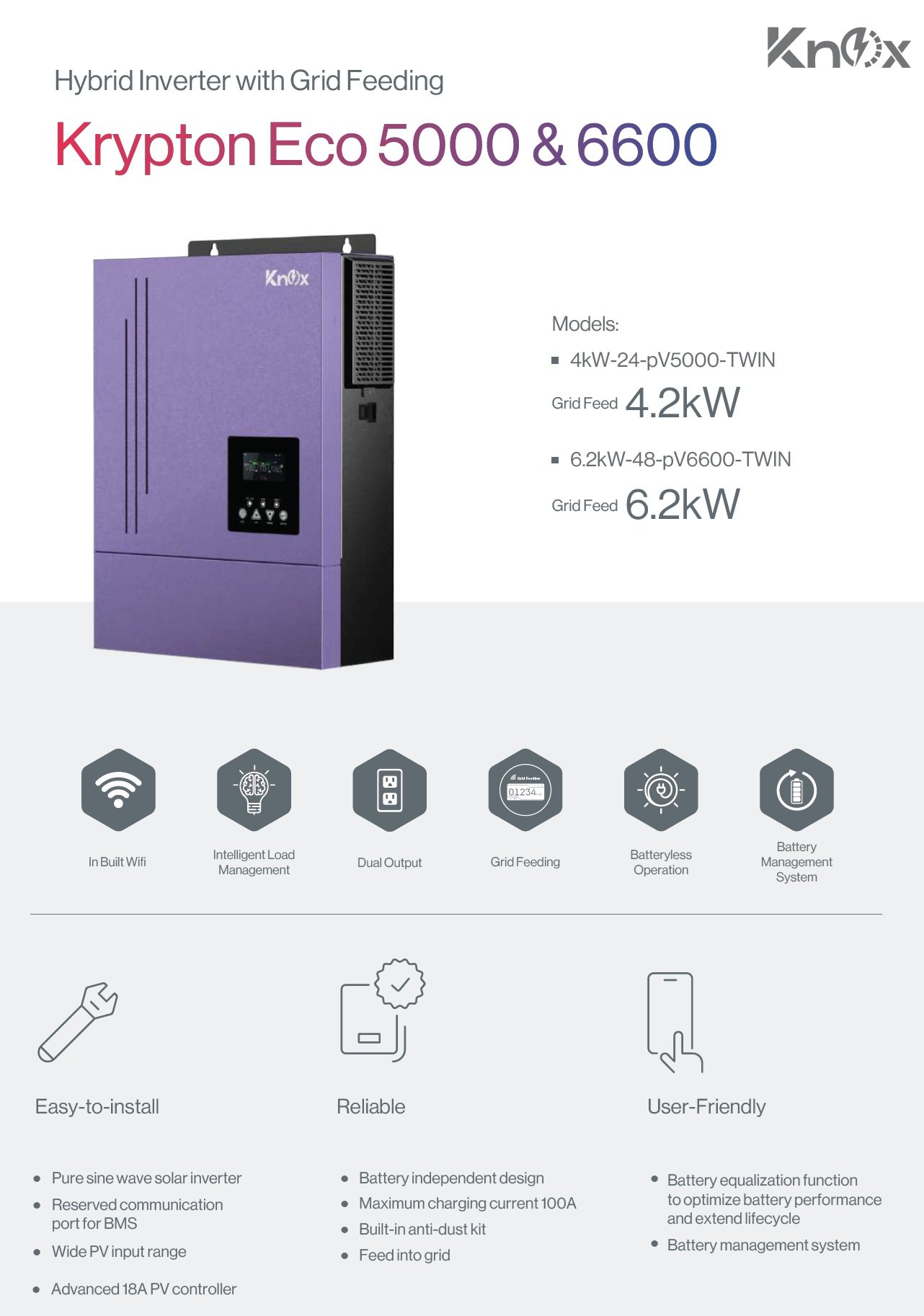

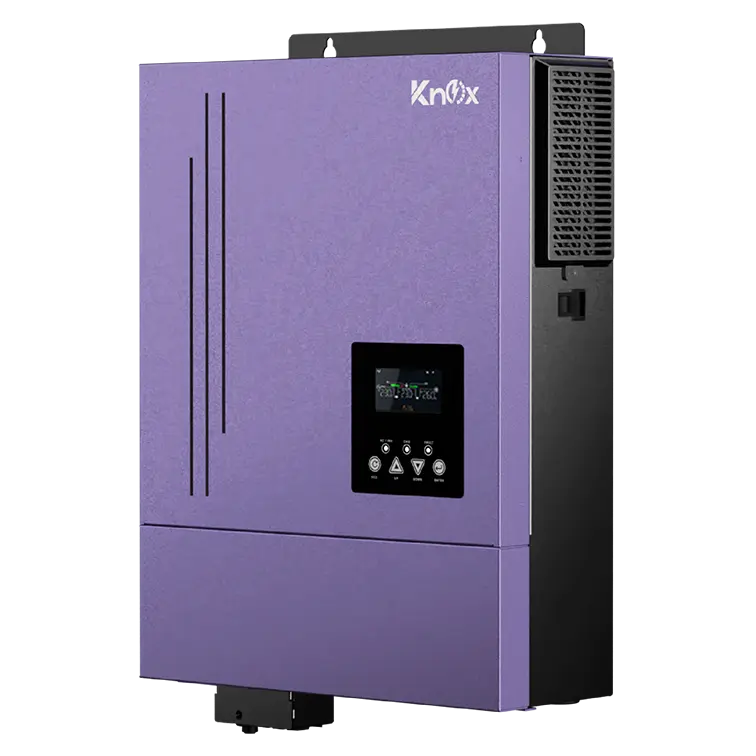

Knox Krypton Eco 5000 & 6600

Hybrid Solar Inverter | Batteryless Grid Feeding | Pure Sine Wave | Built-in WiFi

Knox Krypton Eco 5000 and Eco 6600 hybrid solar inverters with batteryless operation, grid feeding, MPPT charger, built-in WiFi and pure sine wave output.

⭐ Short Product Description

The Knox Krypton Eco 5000 and Knox Krypton Eco 6600 are high-performance hybrid solar inverters designed for grid feeding, battery-independent operation, and intelligent load management. Featuring pure sine wave output, advanced MPPT solar charging, and built-in WiFi monitoring, these inverters deliver stable, efficient power for homes, shops, and small commercial setups.

🔥 Key Features & Benefits

• ✅ Pure Sine Wave Output – Safe for sensitive electronics

• ✅ Batteryless Operation Supported

• ✅ Grid Feeding Capability (4.2kW / 6.2kW)

• ✅ Intelligent Load Management System

• ✅ Advanced Battery Management System (BMS Ready)

• ✅ Built-in WiFi Monitoring (Android & iOS)

• ✅ Wide PV Input Voltage Range

• ✅ High-Efficiency MPPT Solar Charger

• ✅ Battery Equalization for Longer Battery Life

• ✅ Maximum Charging Current up to 100A

• ✅ Built-in Anti-Dust Protection

• ✅ Easy Installation & User-Friendly Design

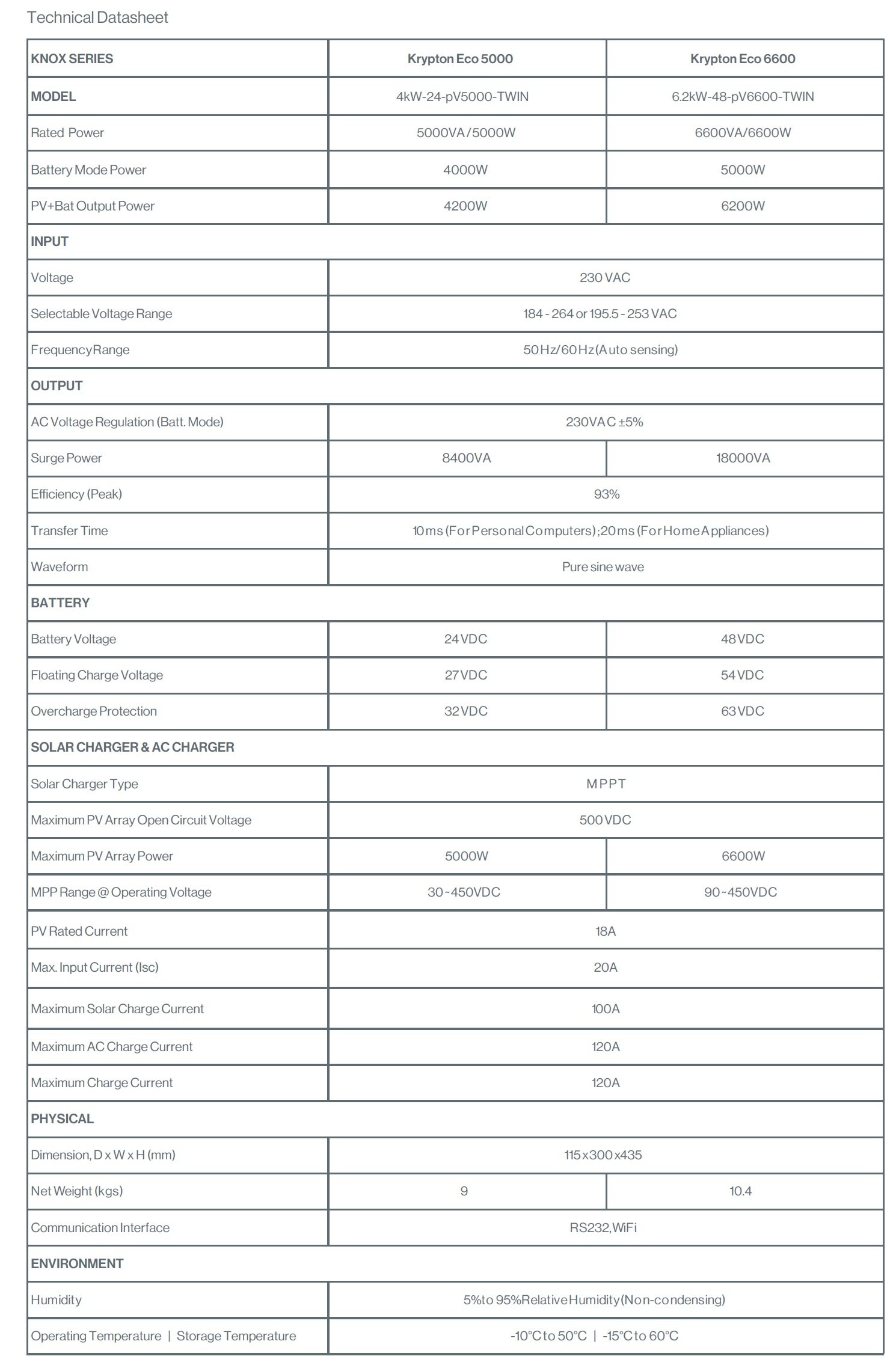

📌 Model Information

⚡ AC Output Specifications

☀️ Solar (PV) Input Specifications

🔋 Battery & Charging

🌐 Monitoring & Communication

🧱 Physical & Environmental

🛡️ Certifications & Compliance

• IEC 61682

• IEC 62109-1

• IEC 62109-2

• IEC 61683

• Low Voltage Directive 2014/35/EU

  ❓ Frequently Asked Questions (FAQs)

  Knox Krypton Eco 5000 & Krypton Eco 6600

  ---

  1. What is the difference between Krypton Eco 5000 and Krypton Eco 6600?

  The Krypton Eco 5000 operates on a 24V battery system with up to 4.2kW grid feeding, while the Krypton Eco 6600 uses a 48V battery system and supports up to 6.2kW grid feeding, making it more suitable for higher power requirements.

  ---

  2. Can these inverters work without batteries?

  Yes. Both Krypton Eco 5000 and Eco 6600 support batteryless operation, allowing solar power to directly feed loads and export power to the grid without installing batteries.

  ---

  3. Do these inverters support grid feeding?

  Yes. These are hybrid grid-feeding inverters and can export excess solar energy to the utility grid when configured properly.

  ---

  4. Which type of batteries are compatible?

  These inverters support lead-acid and lithium batteries and include battery management features such as battery equalization and overcharge protection.

  ---

  5. Is WiFi monitoring available?

  Yes. Both models come with built-in WiFi, allowing real-time monitoring through Android and iOS mobile applications.

  ---

  6. What is the maximum solar panel capacity supported?

  • Krypton Eco 5000: Up to 5000W PV input

  • Krypton Eco 6600: Up to 6600W PV input

  This allows efficient utilization of solar energy for residential and commercial setups.

  ---

  7. Do these inverters produce pure sine wave output?

  Yes. Both models deliver pure sine wave output, making them safe for sensitive electronics, appliances, and computers.

  ---

  8. What is the transfer time during power failure?

  The inverter switches in 10ms for computers and 20ms for home appliances, ensuring uninterrupted operation.

  ---

  9. Can the inverter charge batteries from the grid?

  Yes. Both models support AC charging from the utility grid, with a maximum charging current of up to 120A.

  ---

  10. What solar charging technology is used?

  These inverters use high-efficiency MPPT solar charge controllers, ensuring maximum energy harvest from solar panels.

  ---

  11. Is battery equalization supported?

  Yes. Battery equalization is built-in, which helps improve battery performance and extends battery life, especially for lead-acid batteries.

  ---

  12. Are these inverters suitable for Pakistani weather conditions?

  Yes. The inverters are designed with built-in anti-dust protection and can operate in temperatures from -10°C to 50°C, making them suitable for Pakistan’s climate.

  ---

  13. Can these inverters be used for home and commercial applications?

  Yes. They are ideal for homes, shops, offices, and small commercial installations requiring stable and efficient solar power.

  ---

  14. Do these models support BMS communication?

  Yes. Both models include reserved communication ports for Battery Management Systems (BMS) to ensure safe lithium battery integration.

  ---

  15. Are these inverters compliant with international standards?

  Yes. They are compliant with IEC 61682, IEC 62109-1, IEC 62109-2, IEC 61683, and Low Voltage Directive 2014/35/EU.
