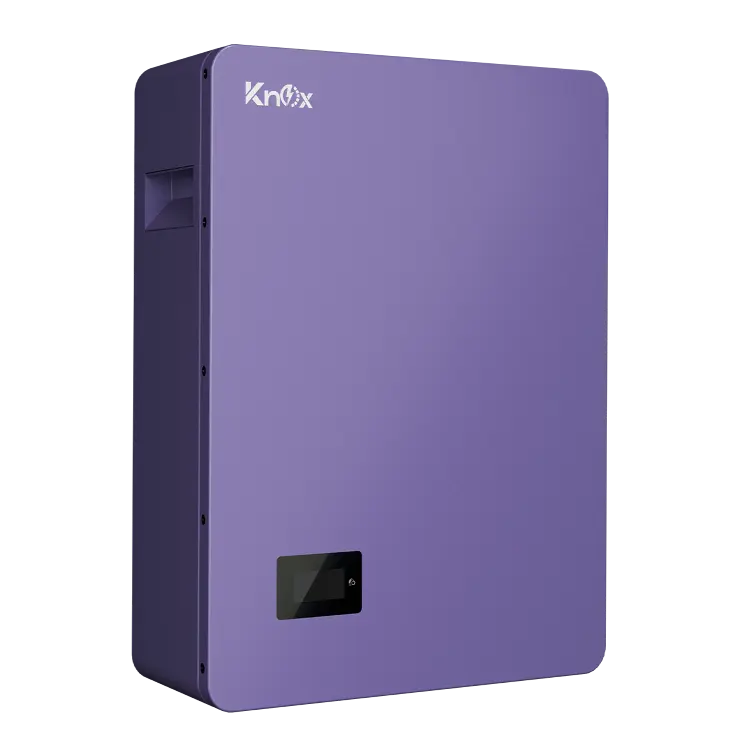

Knox Powerwall 3.0 25.6V 100Ah LiFePO4 Battery – Model LIO 2.56-IP20 | 6000 Cycles

Knox Powerwall 3.0 (LIO 2.56-IP20) is a compact, safe, and long-life 2.56kWh LiFePO4 lithium battery designed for residential solar energy storage. Built with A-grade REPT prismatic cells, intelligent PACE BMS, and a real-time LCD display, it ensures reliable backup power, high efficiency, and easy system expansion.

🌟 Key Features & Benefits

• 🔋 2.56kWh Energy Capacity (25.6V 100Ah)

• 🔁 6000+ Cycles @ 80% Depth of Discharge

• 🧠 PACE Smart BMS with Cell Balancing

• 📊 LCD Display for SOC, Voltage, Temperature & Alarms

• 🏆 A-Grade REPT LiFePO4 Prismatic Cells

• 🛡 Advanced Protection (OVP, LVP, OTP, OCP, SCP)

• 🧱 Metal Enclosure for Superior Heat Dissipation

• 🔌 Series & Parallel Expansion Supported

• 📄 UN38.3 & MSDS Certified

• 🕔 5-Year Manufacturer Warranty

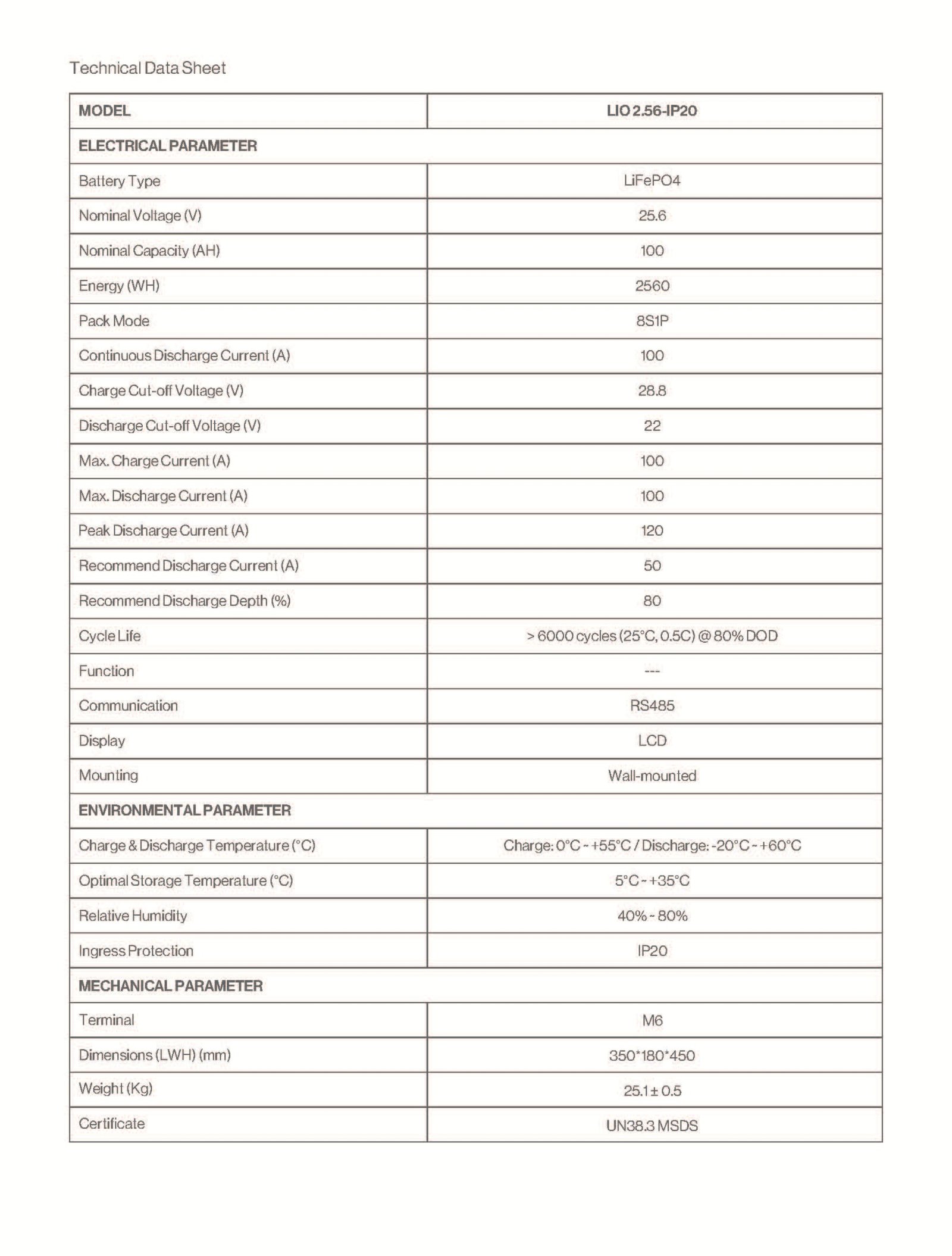

📊 Technical Specifications – Knox Powerwall 3.0

🔌 Electrical Parameters

🔁 Performance & Lifecycle

🧠 Safety & Protection

• Over-charge protection

• Over-discharge protection

• Over-current protection

• Over-temperature protection

• Low-temperature protection

• Short-circuit protection

• Intelligent cell balancing

🔌 Communication & Interface

🌡 Environmental Parameters

🧱 Mechanical Parameters

📜 Certifications

• UN38.3

• MSDS

🔌 Compatible Inverter & Battery Brands

Knox, GoodWe, Solis, SMA, Voltronic Power, Solplanet, Pylontech, Deye, Victron Energy, Growatt, Solax Power, Sofar Solar, Sunsynk, LuxPowerTek, MUST, SRNE, SAKO, Phocos, Megarevo, Crown, Sorotec, Sumry, Motoma, Belicity Solar, Wext Next Power & many more.

💬 Customer & Installer Trust

The Knox Powerwall 3.0 is trusted by installers for its stable communication, compact size, and safety-first design, while homeowners value its long battery life, quiet operation, and real-time LCD monitoring.

❓ Frequently Asked Questions (FAQs)

Q1: Is Knox Powerwall 3.0 suitable for home solar systems?

Yes, it is designed specifically for residential solar, backup power, and hybrid inverter systems.

Q2: Can I expand the battery capacity later?

Yes. You can connect up to 4 batteries in parallel and 2 in series.

Q3: What type of lithium cells are used?

It uses A-grade REPT LiFePO4 prismatic cells, known for safety and long lifespan.

Q4: Does this battery have a display?

Yes, it features an LCD screen showing SOC, voltage, temperature, and alarm status.

Q5: Is maintenance required?

No. The battery is maintenance-free thanks to its intelligent PACE BMS.
