Ultra-Safe Knox Powerwall 6.11 Lithium Battery 51.2V 100Ah | 5.12kWh Long-Life Energy Storage
Original price was: ₨ 259,999.00.₨ 244,999.00Current price is: ₨ 244,999.00.
Knox Powerwall 6.11 LiFePO4 lithium battery 51.2V 100Ah with 6000+ cycles, PACE BMS, inverter compatibility & 5-year warranty. Ideal for solar systems in Pakistan.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.

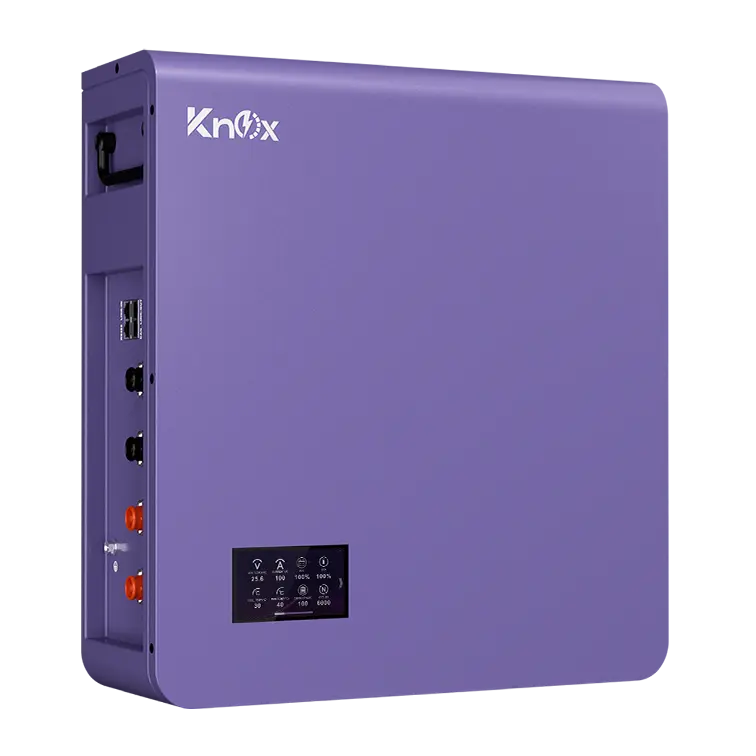

The Knox Powerwall 6.11 (LIO 5.32-IP20) is a high-performance, long-life lithium iron phosphate (LiFePO4) battery, designed for solar and energy storage systems. Built with REPT premium cells, advanced PACE BMS, and 6000+ cycle life, it delivers unmatched safety, scalability, and efficiency for residential and commercial applications.
🌟 Why Customers Love This Battery
✔ Extremely safe & reliable low-voltage system
✔ Long lifespan – over 10 years designed calendar life
✔ Maintenance-free operation
✔ Seamless compatibility with leading inverters
✔ Expandable up to 15 units in parallel
✔ Clean, modern wall-mounted Powerwall design
⚡ Key Features & Benefits
-
🔋 5.12kWh usable energy – ideal for home & business solar
-
🧠 PACE BMS with independent charge & discharge protection
-
🧩 Parallel support up to 15 units for scalable storage
-
🌡 Wide temperature operation (-20°C to +55°C)
-
📱 4.3” touch LCD screen for real-time monitoring
-
🔌 RS485 & CAN communication with major inverter brands
-
🛡 Multi-layer protection: OVP, LVP, OCP, OTP, LTP, short-circuit
-
🧱 Wall-mounted, compact & elegant Powerwall design
📊 Technical Specifications Table
| Specification | Details |
|---|---|
| Product Model | LIO 5.32-IP20 |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Total Energy | 5120Wh (5.12kWh) |
| Cycle Life | >6000 cycles |
| Designed Life | 10 Years |
| Warranty | 5 Years |
| Max Charging Current | 100A |
| Max Discharging Current | 100A |
| Pulse Discharge Current | 120A @ 2s |
| Charging Voltage | 55.2V – 57.6V |
| End of Discharge Voltage | 44V |
| Parallel Support | Yes, up to 15 units |
| Series Support | Not supported |
| BMS Type | PACE BMS |
| Communication (Inverter) | RS485, CAN |
| Communication (Battery-Battery) | LINK-IN / LINK-OUT |
| Operating Temperature | Charge: 0~55°C / Discharge: -20~55°C |
| Humidity Range | 0–95% RH (Non-condensing) |
| Protection Rating | IP20 |
| Display | 4.3” Touch LCD |
| Dimensions (mm) | 442 × 470 × 160 |
| Weight | 46 kg |
| Installation | Wall-Mounted |
| Cell Brand | REPT LiFePO4 |
| Certifications | IEC62619, UL1973, UL9540A, UN38.3, CE, MSDS, ROHS |
🧩 Compatibility
✔ Compatible with major inverter brands
✔ Inverter protocol selectable via LCD
✔ Ideal for hybrid, off-grid & backup solar systems
❓ Frequently Asked Questions
Q1: Is this battery safe for home use?
Yes. The Knox Powerwall 6.11 uses a low-voltage LiFePO4 system with advanced PACE BMS, making it one of the safest lithium batteries available.
Q2: How many batteries can be connected together?
You can connect up to 15 units in parallel, allowing flexible energy expansion as your power needs grow.
Q3: Which inverters are compatible with this battery?
The battery supports RS485 & CAN communication and is compatible with most leading inverter brands.
Q4: What is the battery lifespan?
It offers 6000+ cycles and a designed life of 10 years, backed by a 5-year warranty.
Q5: Can this battery be used in Pakistan’s climate?
Absolutely. It operates efficiently from -20°C to +55°C, making it ideal for Pakistani weather conditions.
🛒 What’s in the Box
-
Knox Powerwall 6.11 Battery
-
Wall Mount Bracket
-
Communication Ports
-
User Manual
🚀 Perfect For
✔ Residential Solar Systems
✔ Commercial Energy Storage
✔ Backup Power Solutions
✔ Hybrid & Off-Grid Installations
