Knox Rackwall 10.5 51.2V 200Ah LiFePO4 Lithium Battery – Model LIO 10.5-IP20 | 10.24kWh-Powerfull
Original price was: ₨ 479,999.00.₨ 444,999.00Current price is: ₨ 444,999.00.
Knox Rackwall 10.5 lithium battery 51.2V 200Ah with REPT LiFePO4 cells, 10.24kWh energy, 6000+ cycles, PACE BMS, rack-mounted design & wide inverter compatibility for commercial solar systems.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.

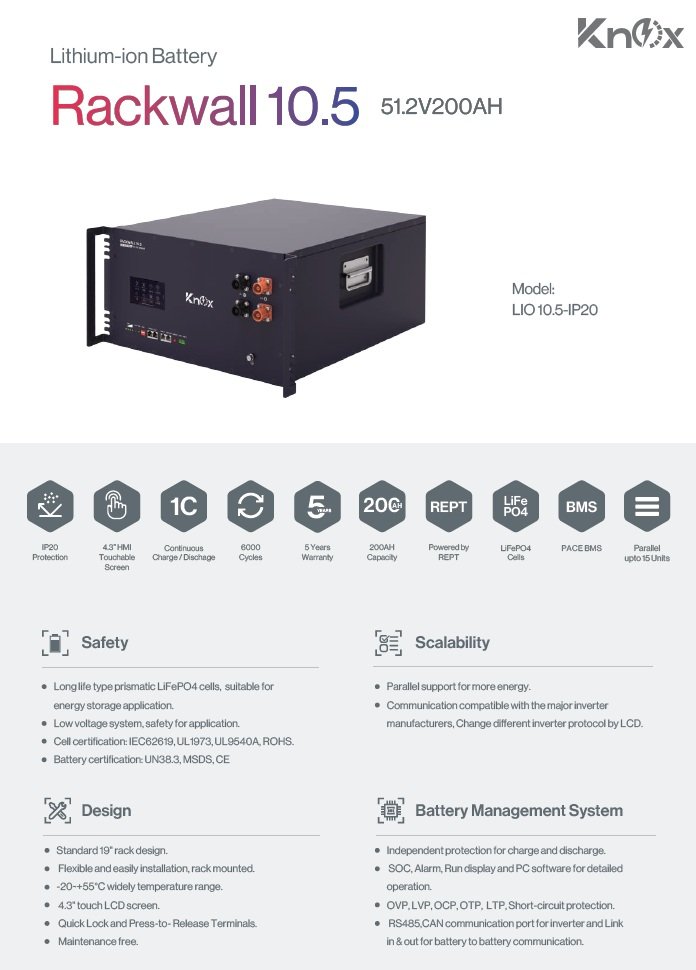

The Knox Rackwall 10.5 (LIO 10.5-IP20) is a 10.24kWh rack-mounted LiFePO4 lithium battery designed for commercial, industrial, and scalable residential solar energy storage. Featuring A-grade REPT prismatic cells, 1C charge/discharge capability, and an intelligent PACE BMS, it delivers reliable performance, long life, and maximum safety.
🌟 Key Features & Benefits
-
🔋 10.24kWh High-Density Energy Storage
-
🔁 6000+ Cycles @ 90% DOD
-
⚡ 1C Continuous Charge & Discharge Capability
-
🧠 Advanced PACE Battery Management System
-
📊 4.3” Touch LCD (SOC, Alarm, Status Display)
-
🏗 Standard 19” Rack-Mounted Design
-
🔗 Parallel Expansion up to 15 Units
-
🛡 Full Electrical & Thermal Protection
-
🔌 RS485 & CAN Communication with Major Inverters
-
🧱 Maintenance-Free, Industrial-Grade Construction
📊 Technical Specifications – Knox Rackwall 10.5
🔌 Electrical Parameters
| Specification | Details |
|---|---|
| Model | LIO 10.5-IP20 |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Cell Brand | REPT – A-Grade Prismatic |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Total Energy | 10,240Wh (10.24kWh) |
| Charging Voltage | 55.2 – 57.6V |
| End of Discharge Voltage | 44V |
| Max Charging Current | 200A |
| Max Discharging Current | 200A |
| Pulse Discharge Current | 240A @ 2s |
| C-Rate | 1C |
🔁 Performance & Lifecycle
| Parameter | Value |
|---|---|
| Cycle Life | >6000 Cycles |
| Test Condition | 25°C, 0.5C/1C @ 90% DOD |
| Designed Calendar Life | 10 Years |
| Parallel Support | Yes, up to 15 Units |
| Series Support | Not Supported |
🧠 Safety & Protection
-
Over-voltage protection
-
Low-voltage protection
-
Over-current protection
-
Over-temperature protection
-
Low-temperature protection
-
Short-circuit protection
-
Independent charge & discharge protection
🔌 Communication & Interface
| Feature | Details |
|---|---|
| Inverter Communication | RS485, CAN |
| Battery-to-Battery | LINK-IN / LINK-OUT |
| Display | 4.3” Touch HMI LCD |
| BMS Type | PACE Intelligent BMS |
🌡 Environmental Parameters
| Parameter | Range |
|---|---|
| Charge Temperature | 0°C ~ +55°C |
| Discharge Temperature | –20°C ~ +55°C |
| Operating Humidity | 0 ~ 95% RH (Non-condensing) |
| Ingress Protection | IP20 |
🧱 Mechanical Parameters
| Specification | Value |
|---|---|
| Mounting Type | 19” Rack-Mounted |
| Dimensions (W×D×H) | 442 × 550 × 250 mm |
| Weight | 83.0 kg |
| Terminal Type | Quick-Lock & Press-to-Release |
📜 Certifications
-
IEC 62619
-
UL 1973
-
UL 9540A
-
ROHS
-
UN38.3
-
MSDS
-
CE
🔌 Compatible Inverter & Battery Brands
Knox, GoodWe, Solis, SMA, Voltronic Power, Solplanet, Pylontech, Deye, Victron Energy, Growatt, Solax Power, Sofar Solar, Sunsynk, LuxPowerTek, MUST, SRNE, SAKO, Phocos, Megarevo, Crown, Sorotec, Sumry, Motoma, Belicity Solar, Wext Next Power & many more.
❓ Frequently Asked Questions (FAQs)
Q1: Is Knox Rackwall 10.5 suitable for commercial solar projects?
Yes. It is designed for commercial, industrial, and scalable solar energy storage systems.
Q2: How many batteries can be connected together?
Up to 15 units can be connected in parallel for higher capacity.
Q3: Does it support high-power applications?
Yes. With 1C charge/discharge, it supports high-load energy demands.
Q4: Which inverter brands are compatible?
It supports most major inverter brands via RS485 & CAN communication.
Q5: Is maintenance required?
No. The system is maintenance-free due to intelligent BMS control.
