Knox Xenon 12066 Hybrid Solar Inverter 6.6kW IP66 | Dual MPPT Smart Grid-Tie & Off-Grid Inverter with Touch Screen
Original price was: ₨ 239,999.00.₨ 219,999.00Current price is: ₨ 219,999.00.
Knox Xenon 12066 6.6kW Hybrid Solar Inverter with Dual MPPT, IP66 protection, 7” touch screen, grid-tie & off-grid support. Reliable, smart & high-efficiency solar inverter.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.

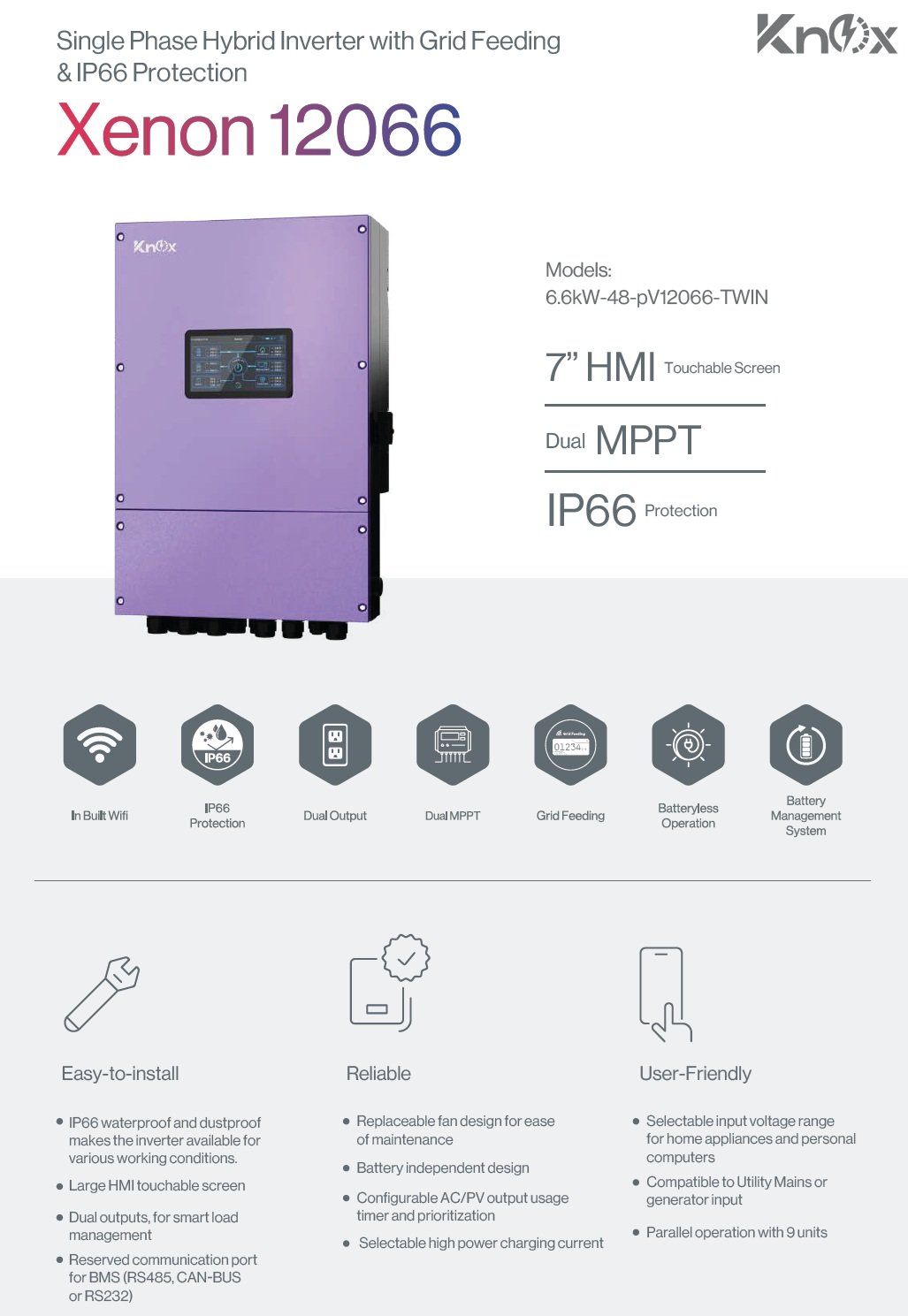

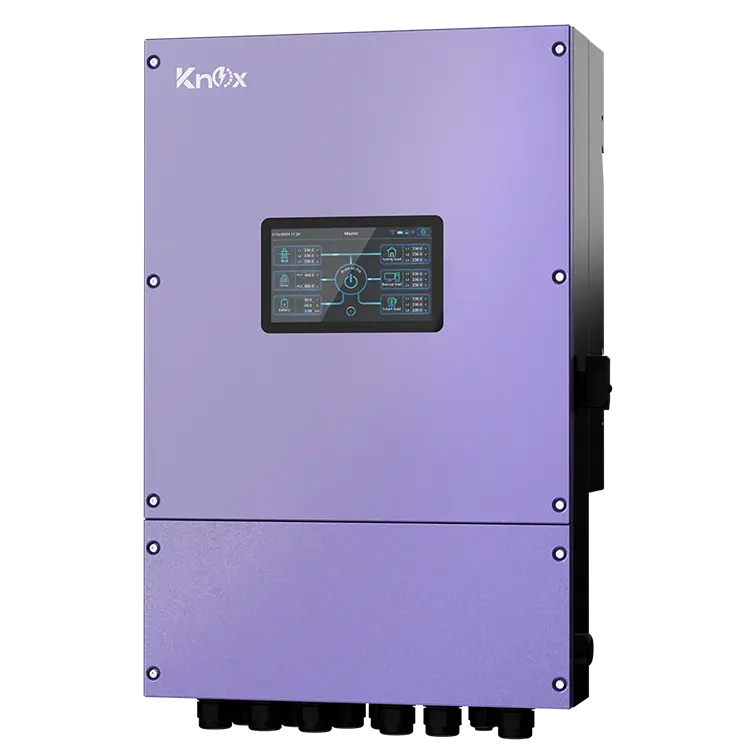

Knox Xenon 12066 6.6kW Hybrid Solar Inverter
with Dual MPPT, IP66 protection, 7” touch screen, grid-tie & off-grid support. Reliable, smart & high-efficiency solar inverter.
Experience power, precision, and peace of mind with the Knox Xenon 12066 Hybrid Solar Inverter—engineered for maximum solar utilization, uninterrupted backup power, and long-term durability in all weather conditions.
📦 Product Description
The Knox Xenon 12066 Single Phase Hybrid Solar Inverter is a high-performance, IP66-rated inverter designed for modern homes, offices, and small commercial solar systems. Featuring Dual MPPT technology, a large 7-inch touchable HMI screen, and pure sine wave output, it ensures stable power, high efficiency, and intelligent energy management.
With support for grid feeding, generator input, and battery operation, the Xenon 12066 offers exceptional flexibility. Its parallel capability of up to 9 units makes it scalable for growing energy demands, while smart load management with dual outputs ensures priority power delivery.
Built for harsh environments, the IP66 waterproof and dustproof enclosure allows reliable indoor and outdoor installation. Advanced communication options including WiFi, RS485, CAN-Bus, and USB make monitoring and system integration effortless.
⚡ Key Features & Benefits
✅ 6.6kW Hybrid Solar Inverter (Grid-Tie & Off-Grid)
✅ Dual MPPT Technology for higher solar yield
✅ IP66 Protection – weatherproof & dustproof
✅ 7” Touchable HMI Screen for easy monitoring
✅ UPS-Grade Transfer Time (10ms) for PCs
✅ Pure Sine Wave Output for sensitive electronics
✅ Parallel Operation up to 9 Units
✅ Battery Independent Design
✅ Dual AC Outputs for Smart Load Management
✅ Compatible with Utility Grid & Generator
✅ Selectable Input Voltage for Appliances & PCs
✅ High Charging & Discharging Current Support
✅ User-Friendly, Reliable & Easy to Install

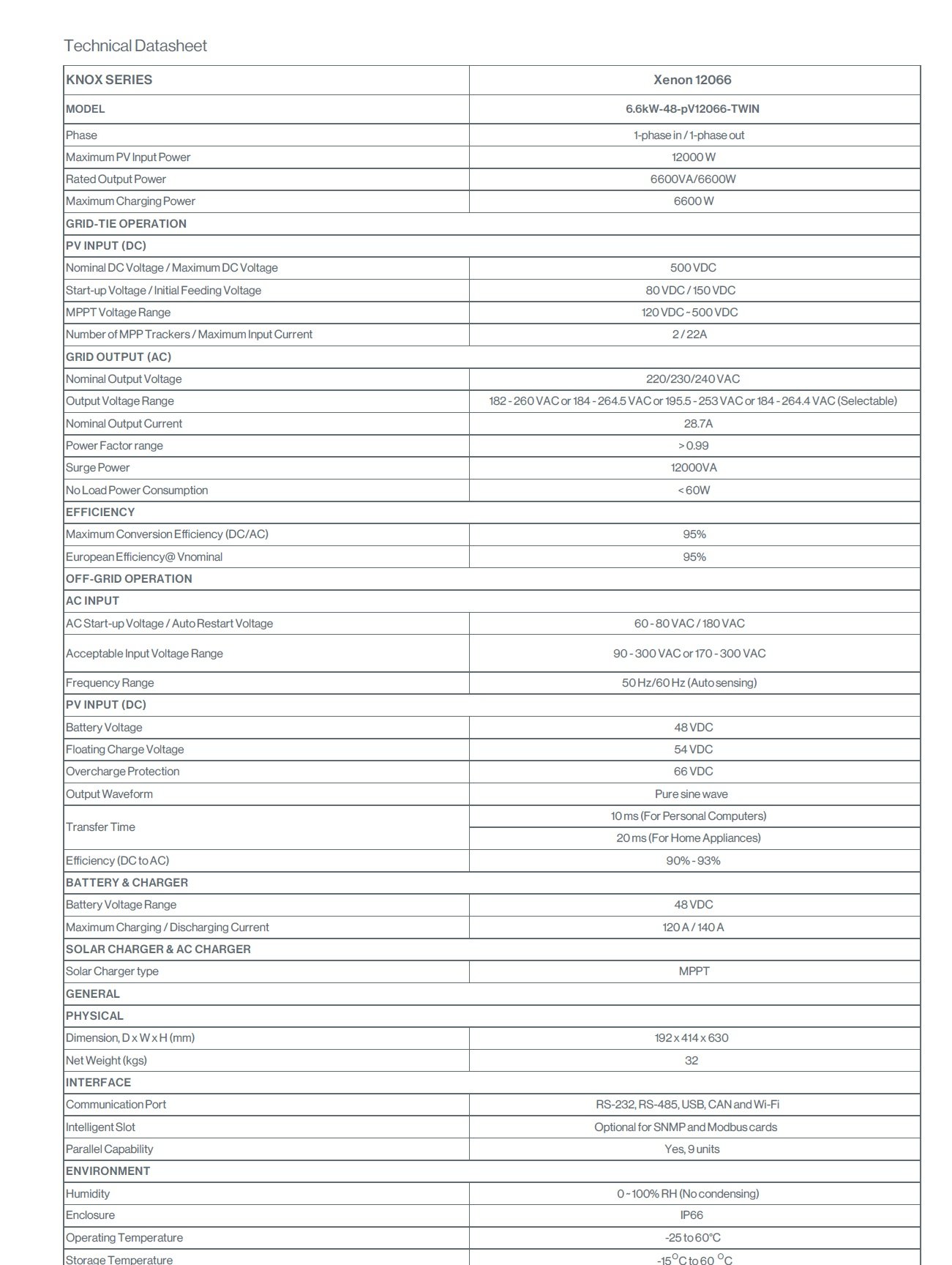

📊 Technical Specifications (Table Format)
General Information
| Specification | Details |
|---|---|
| Series | Knox Xenon |
| Model | Xenon 12066 |
| Phase | Single Phase (1-in / 1-out) |
| Protection | IP66 |
| Display | 7” Touchable HMI Screen |
| Cooling | Replaceable Fan |
| Parallel Capability | Up to 9 Units |
PV Input (DC)
| Parameter | Value |
|---|---|
| Max PV Input Power | 12,000 W |
| Nominal DC Voltage | 500 VDC |
| Start-up Voltage | 80 VDC |
| Initial Feeding Voltage | 150 VDC |
| MPPT Voltage Range | 120 – 500 VDC |
| MPPT Trackers | 2 |
| Max Input Current | 22 A per MPPT |
AC Output (Grid / Load)
| Parameter | Value |
|---|---|
| Rated Output Power | 6600 VA / 6600 W |
| Nominal Output Voltage | 220 / 230 / 240 VAC |
| Output Voltage Range | Selectable (182 – 264 VAC) |
| Nominal Output Current | 28.7 A |
| Power Factor | > 0.99 |
| Surge Power | 12,000 VA |
| Output Waveform | Pure Sine Wave |
Battery & Charger
| Specification | Value |
|---|---|
| Battery Voltage | 48 VDC |
| Battery Voltage Range | 48 VDC |
| Max Charging Current | 120 A |
| Max Discharging Current | 140 A |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Charger Type | MPPT |
Efficiency & Performance
| Parameter | Value |
|---|---|
| Max DC/AC Efficiency | 95% |
| European Efficiency | 95% |
| Transfer Time (PCs) | 10 ms |
| Transfer Time (Appliances) | 20 ms |
| No Load Power Consumption | < 60 W |
Communication & Interface
| Interface | Supported |
|---|---|
| Communication Ports | RS-232, RS-485, USB, CAN |
| Wireless Monitoring | Wi-Fi |
| Expansion Slot | SNMP / Modbus (Optional) |
Physical & Environmental
| Parameter | Value |
|---|---|
| Dimensions (D×W×H) | 192 × 414 × 630 mm |
| Net Weight | 32 kg |
| Operating Temperature | -25°C to +60°C |
| Humidity | 0 – 100% RH (Non-condensing) |
| Storage Temperature | -15°C to +60°C |
| Altitude | Up to 1000 m |
🛡️ Certifications & Compliance
IEC 61682
IEC 62109-1 / IEC 62109-2
IEC 61683
Low Voltage Directive 2014/35/EU
Enclosure Protection: IP66
❓ FAQ (Rank Math Schema Ready)
Q1: Is the Knox Xenon 12066 suitable for both grid-tie and off-grid systems?
Yes, it supports grid feeding, battery backup, and generator input.
Q2: Can this inverter run sensitive electronics like computers?
Absolutely. It provides pure sine wave output with 10ms transfer time, ideal for PCs.
Q3: Can multiple Xenon 12066 units be connected together?
Yes, it supports parallel operation up to 9 units.
Q4: Is outdoor installation safe?
Yes. The IP66 waterproof and dustproof design allows safe outdoor installation.
Q5: Does it support lithium batteries?
Yes, it supports 48V lithium and lead-acid battery systems via BMS communication.
