Knox Xerox G4 Pro 40kW–50kW Best Three Phase Solar Inverter | Power Full High Efficiency Commercial PV Inverter
Price range: ₨ 449,999.00 through ₨ 459,999.00
Knox Xerox G4 Pro 40kW–50kW three phase solar inverter with 5 MPPTs, IP66 protection, 150% PV oversizing & smart monitoring. Ideal for commercial solar systems.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.

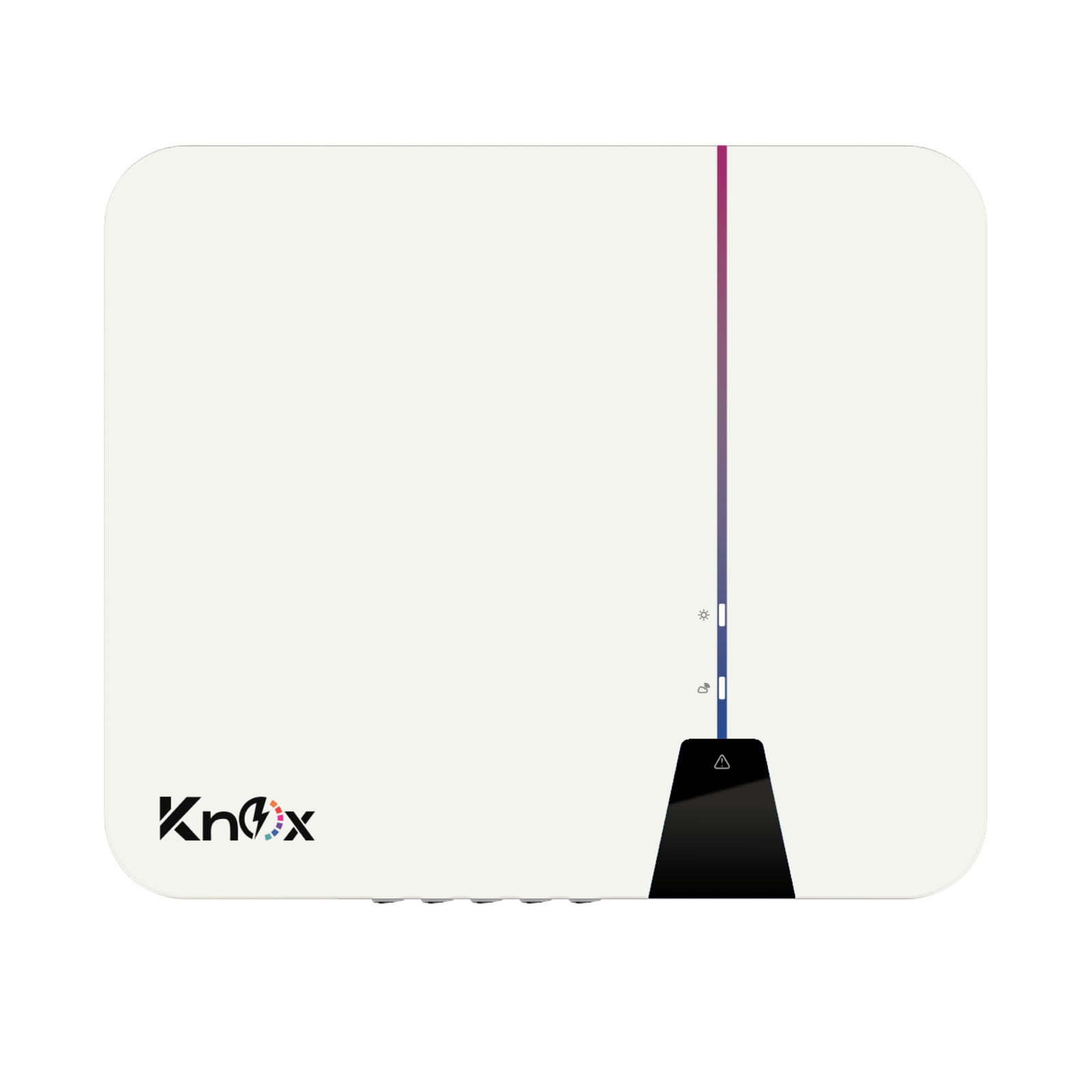

Knox Xerox G4 Pro 40kW–50kW
Knox Xerox G4 Pro 40kW–50kW Three Phase Solar Inverter is a powerful, reliable, and high-efficiency solution for commercial and industrial solar installations. Designed with up to 5 MPPTs, 150% PV oversizing, and IP66 outdoor protection, it delivers maximum energy yield even in challenging conditions.
🌟 Positive Buyer Sentiments
✔ Rock-solid performance in large solar projects
✔ Excellent energy generation even with shading
✔ Installer-friendly, tool-free DC connections
✔ Proven reliability for long-term commercial use
✔ Trusted global certifications & safety standards
🚀 Key Features & Benefits
🔌 Phoenix Contact connectors for tool-free, secure DC wiring
🧠 Up to 5 MPPTs for flexible PV array design
⚡ 150% PV array oversizing for higher yields
🌥 ShadeSol technology for improved output under shading
🛡 Type II AC & DC surge protection
🔁 Fuse-free design reduces BOS cost
📱 Monitoring & commissioning via Ai Solar App
🌧 IP66 rated – suitable for outdoor installations
❄ Operates in -30°C to +60°C environments
📊 Technical Specifications Table
General Information
| Feature | G4 Pro 40K / 60kWp | G4 Pro 50K / 75kWp |
|---|---|---|
| Rated Active Power | 40,000 W | 50,000 W |
| Max PV Array Power | 60,000 Wp | 75,000 Wp |
| Rated Apparent Power | 40,000 VA | 50,000 VA |
| Max Apparent Power | 44,000 VA | 55,000 VA |
| Feed-in Phases | 3 / 3-N-PE | 3 / 3-N-PE |
DC Input (PV)
| Specification | Details |
|---|---|
| MPP Voltage Range | 180V – 1000V |
| Rated Input Voltage | 630V |
| Max Input Voltage | 1100V |
| Max Input Current | 20A per string |
| Max Short Circuit Current | 50A / 40A / 25A |
| MPPTs / Strings | Up to 5 MPPTs |
| Initial Feed-in Voltage | 200V |
| Min Input Voltage | 160V |
AC Output
| Specification | Details |
|---|---|
| AC Nominal Voltage | 230V / 400V |
| AC Grid Frequency | 50 / 60 Hz |
| Frequency Range | 45–55 Hz / 55–65 Hz |
| Rated Output Current | 63.8A (40K) / 79.7A (50K) |
| Power Factor | 0.8 leading to 0.8 lagging |
| THD | < 3% |
Efficiency & Protection
| Feature | Details |
|---|---|
| Max Efficiency | 98.7% |
| European Efficiency | 98.3% |
| Topology | Non-isolated |
| Cooling | Active Cooling |
| DC Switch | Integrated |
| Surge Protection | Type II AC & DC |
| Ground Fault Monitoring | Yes |
| Anti-Islanding Protection | Yes |
| AFCI | Yes |
| Residual Current Monitoring | Yes |
Mechanical & Environmental
| Feature | Details |
|---|---|
| Dimensions (W×H×D) | 574 × 513.5 × 234.5 mm |
| Weight | 29.5 kg (40K) / 30.5 kg (50K) |
| Protection Rating | IP66 |
| Operating Temperature | –30°C to +60°C |
| Humidity | Non-condensing |
| Max Altitude | 3000 m |
| Mounting | Wall-mount bracket |
Communication & Compliance
| Feature | Details |
|---|---|
| Communication | RS485 / Wi-Fi / LAN / 4G |
| Country of Manufacture | China |
| Certifications | IEC 62109-1, IEC 62109-2, IEC 62727, IEC 62683, IEC 62116 |
❓ FAQs
Q1: Is this inverter suitable for commercial solar projects?
Yes, the Knox G4 Pro Series is specifically designed for commercial and industrial-scale solar systems.
Q2: Can it handle large PV modules and bifacial panels?
Absolutely. With 20A input current per string, it works perfectly with bifacial and high-power PV modules.
Q3: Is outdoor installation safe?
Yes. The inverter has an IP66 protection rating, making it ideal for outdoor environments.
Q4: How many MPPTs does it support?
It supports up to 5 MPPTs, allowing flexible PV array design and better energy optimization.
Q5: How can I monitor the inverter?
You can easily monitor, configure, and commission the inverter using the Ai Solar mobile app or via LAN / Wi-Fi / 4G.
🎯 Ideal Applications
✔ Commercial Buildings
✔ Industrial Facilities
✔ Large Rooftop Solar Systems
✔ Grid-Tied Solar Power Plants
| Model | G4 Pro 40KW / 60kWp, G4 Pro 50KW / 75kWp |
|---|
