Knox Zynex Series Hybrid Solar Inverter IP66 | 3 MPPT Smart UPS-Grade Inverter for On-Grid & Off-Grid Solar Systems

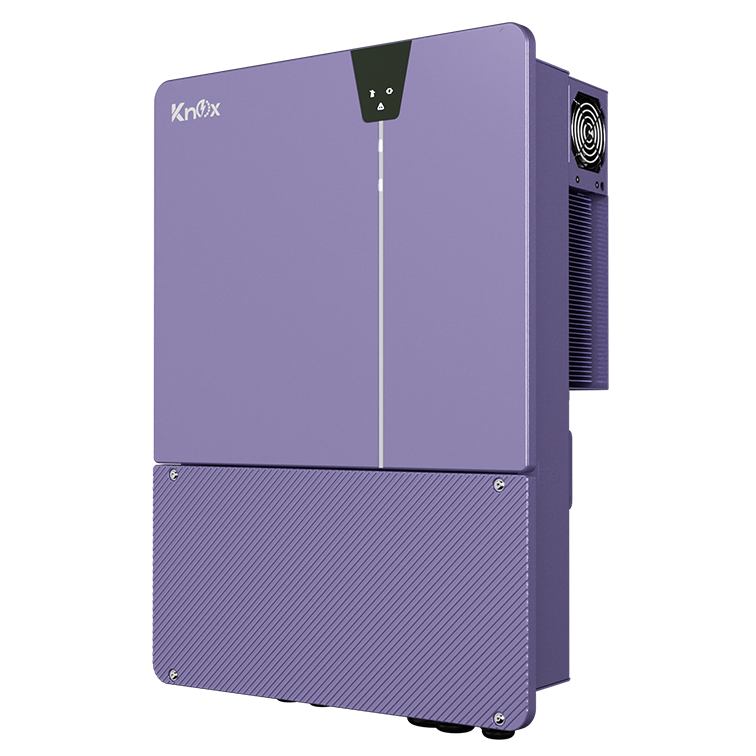

Knox Zynex Series Hybrid Solar Inverter

Power your home or business with confidence, intelligence, and reliability.
The Knox Zynex Series Hybrid Inverter delivers exceptional energy efficiency, seamless backup power, and advanced MPPT optimization, making it a future-ready solar solution for Pakistan’s demanding energy needs.

📦 Product Description

The Knox Zynex Series Single Phase Hybrid Solar Inverter is a next-generation, high-performance inverter designed for both on-grid and off-grid solar applications. With 3 independent MPPTs, IP66 protection, and UPS-grade switching time under 10ms, it ensures maximum energy harvest, uninterrupted power, and long-term durability.

Supporting up to 200% PV oversizing, the Zynex Series is ideal for bifacial and large-area solar panels, delivering higher yields even in shaded conditions thanks to ShadeSol shadow management.

Its multi-source black start capability allows seamless operation using solar, battery, and generator, while smart monitoring via the KNOX App ensures effortless setup and real-time performance tracking.

This inverter is compatible with both lithium (LiFePO4) and lead-acid batteries, making it a flexible and scalable solution for homes, shops, offices, and commercial solar installations.

⚡ Key Features & Benefits

• ✅ 3 Independent MPPTs for maximum solar optimization

• ✅ IP66 Protection – indoor & outdoor installation

• ✅ UPS-Level Switching (<10ms) for zero power interruption

• ✅ Up to 200% PV Oversizing for higher energy production

• ✅ ShadeSol Shadow Management for shaded environments

• ✅ Up to 200% Power Output for 10s during outages

• ✅ Black Start Capability (PV + Battery + Generator)

• ✅ Expandable up to 30kW (parallel operation)

• ✅ Compatible with Lithium & Lead-Acid Batteries

• ✅ Smart Monitoring via KNOX App (WiFi/LAN)

• ✅ High Efficiency up to 97.6%

• ✅ User-Friendly, Reliable & Easy to Install

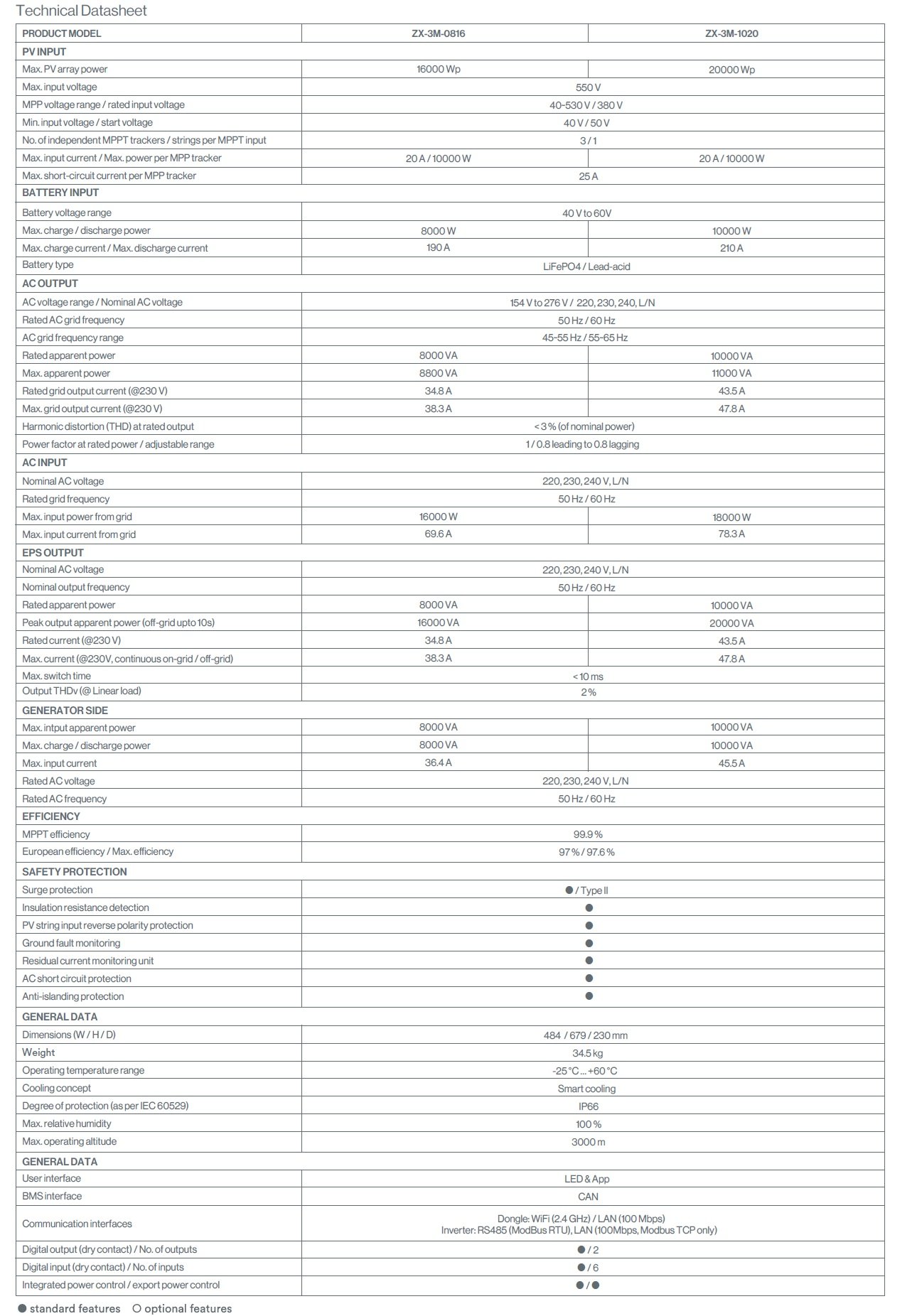

📊 Technical Specifications Table

General Information

Available Models

PV Input

Battery Input

AC Output / Grid

Safety & Protection

• Surge Protection (Type II)

• Anti-Islanding Protection

• Ground Fault Monitoring

• Residual Current Monitoring

• AC Short Circuit Protection

• Insulation Resistance Detection

• Reverse Polarity Protection

🔌 Communication & Monitoring

• WiFi Dongle (2.4 GHz)

• LAN (100 Mbps)

• RS485 (Modbus RTU)

• Modbus TCP

• Smart Monitoring via KNOX App

❓ FAQs

Q1: Is the Knox Zynex Series suitable for off-grid solar systems?

Yes, it supports both on-grid and off-grid operation with battery and generator integration.

Q2: Does this inverter support lithium batteries?

Yes, it is fully compatible with LiFePO4 lithium and lead-acid batteries.

Q3: Can I install it outdoors?

Absolutely. With IP66 protection, it is safe for outdoor installation.

Q4: How fast is the backup switching time?

The inverter offers UPS-level switching under 10 milliseconds, ensuring uninterrupted power.

Q5: Can multiple units be connected together?

Yes, the system is expandable up to 30 kW via parallel connection.
