Sunwoda Luminey MonaWall SE5 5kWh 51.2V Lithium Battery |Power full Best | IP65 | 6000 Cycles | Built-in WiFi | 7 Years Warranty
Original price was: ₨ 275,000.00.₨ 264,999.00Current price is: ₨ 264,999.00.
Buy Sunwoda Luminey MonaWall SE5 5kWh 51.2V LiFePO4 wall mount battery with 6000 cycles, 100% DOD, IP65 protection, built-in WiFi monitoring & 1C discharge. Scalable to 80kWh. 7-year warranty.
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.

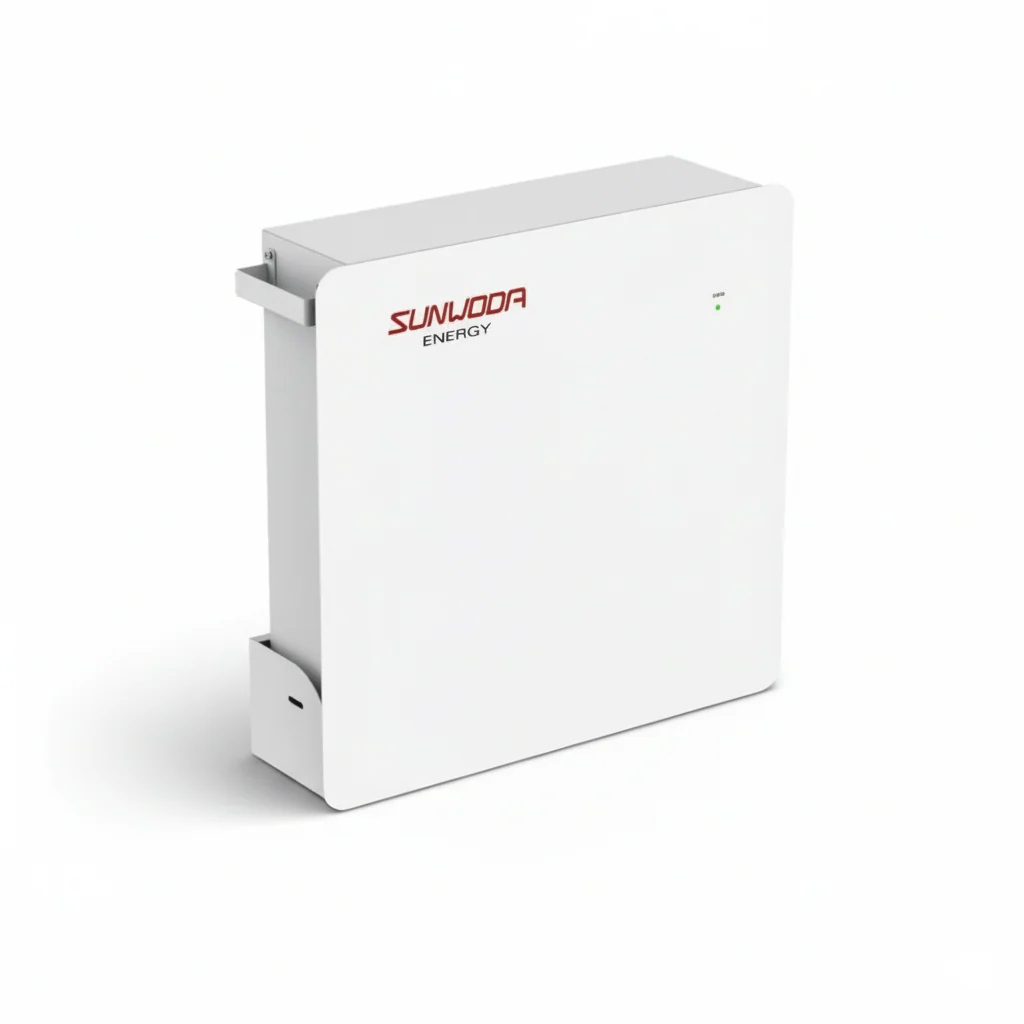

Sunwoda Luminey MonaWall SE5 5kWh
Luminey MonaWall SE5 – Cleaner Power, Reliable Benefits
The Luminey MonaWall SE5 is a high-performance 5kWh lithium iron phosphate (LiFePO4) wall-mounted battery designed for residential and small commercial solar energy storage systems.
With IP65 protection, built-in WiFi monitoring, 100% DOD, and 6000 life cycles, the SE5 delivers safe, durable, and efficient energy storage for indoor or outdoor installations.
⚡ Key Features
✔ 5kWh Energy Capacity
✔ 51.2V LiFePO4 Battery
✔ 6000 Life Cycles
✔ 100% Depth of Discharge (DOD)
✔ 1C Continuous Charge & Discharge
✔ Built-in WiFi Monitoring via Mobile App
✔ IP65 Water & Dust Resistant
✔ Anti-Expansion Safety Design
✔ Built-in Heater for Low Temperature Protection
✔ Quick Plug & Unplug DC Terminals
✔ Wall Mount Installation
✔ 7 Years Warranty (6+1)*

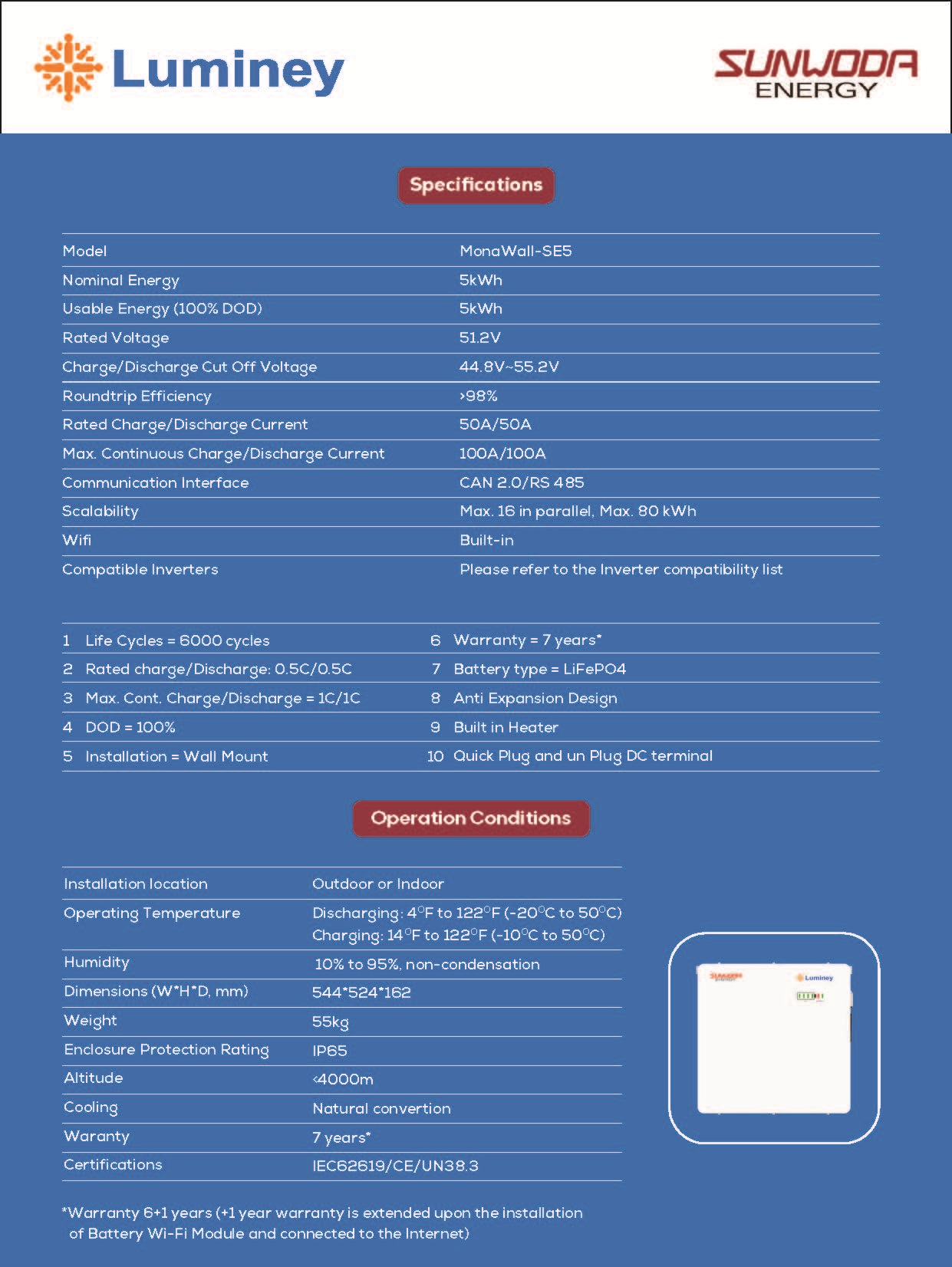

📊 Technical Specifications
🔹 Electrical Specifications
Model: MonaWall-SE5
Nominal Energy: 5kWh
Usable Energy: 5kWh (100% DOD)
Rated Voltage: 51.2V
Charge/Discharge Cut-Off Voltage: 44.8V ~ 55.2V
Roundtrip Efficiency: >98%
Rated Charge/Discharge Current: 50A / 50A (0.5C)
Max Continuous Charge/Discharge Current: 100A / 100A (1C)
Battery Type: LiFePO4 (Lithium Iron Phosphate)
Life Cycles: 6000 Cycles
Communication Interface: CAN 2.0 / RS485
WiFi: Built-in

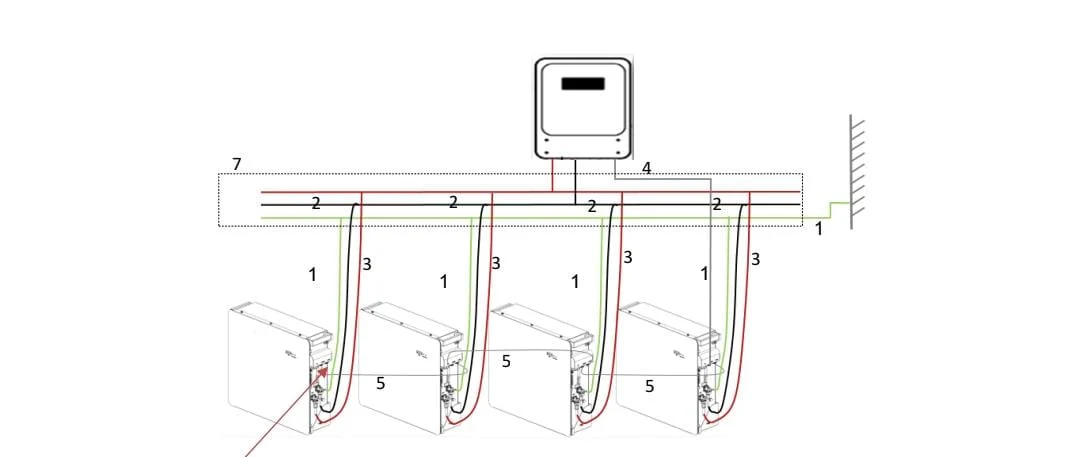

🔹 Scalability
Parallel Support: Max. 16 units
Maximum System Capacity: 80kWh
Ideal for expanding residential or commercial solar storage systems.
🔹 Mechanical & Environmental
Installation: Wall Mount
Installation Location: Indoor or Outdoor
Dimensions (W × H × D): 544 × 524 × 162 mm
Weight: 55kg
Cooling: Natural Convection
Enclosure Protection: IP65
Altitude: <4000m
🌡 Operating Temperature
Discharging: -20°C to 50°C (4°F to 122°F)
Charging: -10°C to 50°C (14°F to 122°F)
Humidity: 10% to 95% (Non-condensing)
🔐 Safety & Certifications
IEC62619
CE
UN38.3
Designed with enhanced structural integrity and anti-expansion technology for maximum operational safety.
🔌 Compatible Inverters
The MonaWall SE5 supports major hybrid inverter brands. Please refer to the official inverter compatibility list or confirm with technical support before installation.
| Brand | Compatible Models / Series |
|---|---|
| Luminey | All Luminey Hybrid Inverter Series |
| Inverex | Veyron II 6000W-48V |
| Maxpower | Nitrox 6kW, Nitrox 8kW, Nitrox 12kW |
| Crown | Nova Series, Crown Hybrid Models |
| Tesla | Tesla Compatible Series (Contact for list) |
| Solis | Solis Hybrid Series |
| Power Square | Power Square Hybrid Series |
| Knox | Xenon, Krypton, Orion Series |
| Solarmax | Solarmax Hybrid Models |
| 1on | 1on Hybrid Inverter Series |
| Djdc (Dongjin) | DJDC / Dongjin Hybrid Series |
| Luxpower | LXP3K 3kW, 4kW, 5kW, 6kW Hybrid Inverters |
| Goodwe | GW3648D-ES, GW5048D-ES, EM/ES Hybrid Series |
| Solax | X1-HYB-LV / X1-Lite-LV |
| Growatt | SPH 3000/4000/5000/6000TL |
| Megarevo | Megarevo Hybrid Series |
| Saj | SAJ Hybrid Models |
| SMA | SMA Hybrid Inverter Series |
| Deye | Deye Hybrid Models (SUN SG Series) |
| Sacolar | Sacolar Hybrid Models |
| Solplanet | Solplanet Hybrid Series |
| Senergy | Senergy Hybrid Inverters |
| ELECRA | PV8000 Series |
| Suntronic | PV6000 Pro, PV7000 Pro, PV10000 Ultra, PV12000 Ultra |
| Elego | Elego 6kW, Elego 6kW IP65, Elego 8kW IP65 |
| Nova | Nova Hybrid Series |
| Xavier | Xavier 6kW Models |
| S6 Series | S6 Hybrid 6kW LV, 8kW LV, 12kW LV, 14kW LV, 16kW LV |
| Hybrid PV | PV7000, PV10000, PV12000 Hybrid |
| Argon | Argon VM II 6000 Series |
| Krypton Series | PV7200 – PV13000 Hybrid Inverters |
| Orion Series | Orion Ultra 6kW, Orion Ultra 8kW, Orion Ultra 11kW |
| ONYX Series | ONYX Dual 8kW, ONYX 6kW Hybrid |
| Falcon Ultra | Falcon Ultra 6kW Series |
| MD Ultra | MD Ultra 6kW / 8kW Series |
| DONGJIN MaxPro | MaxPro 11kW-48V |
| ASW Series | ASW3000-6000H-S2-48V |
| GW Series | GW3600S/5000S-BP, GW3048/5048-EM, etc. |
| H Series | H1-3K-S2, H1-(3~6)K-S2 |
| SI Series | SI 4.4-M, SI 6.0-H, SI 8.0-H |
| SUN Series | SUN-3.6/5/6K-SG03LP1-EU, SUN-5/6/8/10/12K-SG04LP3-EU |
| MHP / MLP / SP | MHP 3000 Series, M5000H-48BP, MHP/MLP/SP Series |
| SE Series | SE 4K6/5K/6KHB-120, SE 8/10KHB-T/EU, SE 4.6/5/6KHB60/120 |
Communication supported via CAN 2.0 and RS485 protocols.
🏠 Applications
• Residential Solar Systems
• Home Backup Power
• Hybrid Solar Inverter Systems
• Off-Grid Installations
• Outdoor Solar Energy Storage
🛡 Warranty
7 Years Warranty (6+1 Years)
+1 year extended warranty upon installation of Battery Wi-Fi Module and connection to the Internet.
🌟 Why Choose Luminey MonaWall SE5?
Full 100% energy utilization
Long lifespan (6000 cycles)
Outdoor-ready IP65 protection
Built-in remote monitoring
High 1C power performance
Expandable up to 80kWh
Trusted manufacturing by Sunwoda Energy
Related products
Inverex Nitrox 12KW Hybrid Solar Inverter | 48V | Three Phase | IP65 | 240A MPPT
Original price was: ₨ 795,000.00.₨ 764,999.00Current price is: ₨ 764,999.00.
Knox Krypton 12002 / 13002 / 15002 Hybrid Solar Inverter | Dual MPPT | Batteryless | Grid Feeding | IP Protection
Price range: ₨ 254,999.00 through ₨ 284,999.00

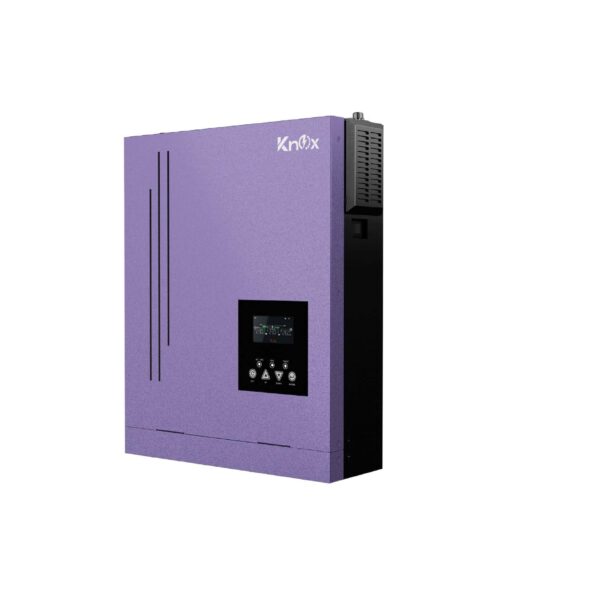

KNOX Krypton Eco 4000 Pure Sine Wave Hybrid Solar Inverter – 3kW 24V MPPT, Grid Feeding, Wi-Fi, 100A
